2.8” TFT Display 320x240 with Touchscreen, SPI Interface, ST7789V2 Driver

Model / SKU: GFC320240-2.8INTM

2.8'' TFT LCD Display is an IPS display With TouchScreen, Resolution (320x240), Wide viewing angle (160°), Response time (3ms), Contrast (800:1).

Diagonal Dimension (Inches)

2.8

LCD Active Area WxHxD (mm)

43.20 x 57.60

Display Mode

IPS / Transmissive

Interface Type

SPI Interface (MCU/RGB/MIPI Customizable)

Model / Series Name	GFC320240-2.8INTM
Diagonal Dimension (Inches)	2.8
Dots WxH	320 x 240

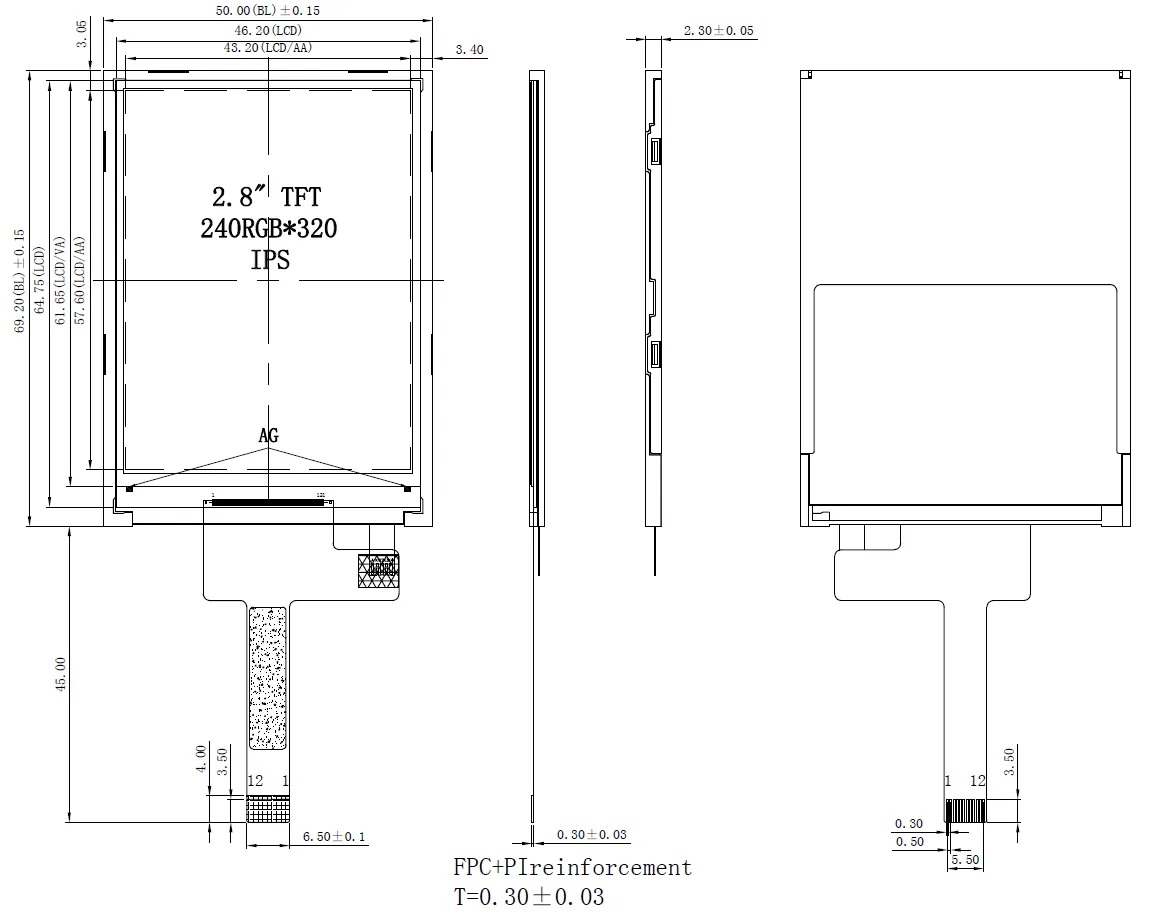

Module Size WxHxD (mm)	50.00 x 69.20 x 2.30
LCD Active Area WxHxD (mm)	43.20 x 57.60
Display Mode	IPS / Transmissive
Viewing Angle	Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;
IC	ST7789V2
Interface Type	SPI Interface (MCU/RGB/MIPI Customizable)
Logic Power Supply Voltage	3.0V to 3.6V
Backlight	4 LEDs
Luminance	380 cd/m2
Touch Panel	Optional RTP or CTP

Model / Series Name

GFC320240-2.8INTM

Diagonal Dimension (Inches)

2.8

Dots WxH

320 x 240

Module Size WxHxD (mm)

50.00 x 69.20 x 2.30

LCD Active Area WxHxD (mm)

43.20 x 57.60

Display Mode

IPS / Transmissive

Viewing Angle

Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;

ST7789V2

Interface Type

SPI Interface (MCU/RGB/MIPI Customizable)

Logic Power Supply Voltage

3.0V to 3.6V

Backlight

4 LEDs

Luminance

380 cd/m2

Touch Panel

Optional RTP or CTP

Product highlights

Wide Viewing Angle: The IPS (In-Plane Switching) technology provides a wide viewing angle of 160 degrees, making it look great from any direction.

Sharp Image Clarity: The resolution of 320x240 and contrast of 800:1 allow us to see sharp and clear images.

Fast Response Time: With a response time of 3ms, this 2.8’’ TFT display can play fast-moving images without ghosting or blurring effects. So MP3 video players or digital cameras use for video playback.

Interactive Design: You can add a capacitive or resistive touch screen to simplify product design. That can enhance the user experience and provide a simple way to control without additional buttons or input devices.

Customizable Solution: Go2Display can provide custom TFT display solutions to meet your specific requirements.

Product description

This 2.8 inch TFT LCD is an IPS display Module with IPS panel / Active-Matrix TFTs / Resolution of 320×240 / Contrast ratio of 800:1 / 3ms Response Time / Optional Touchscreen / SPI Interface / ST7789V2 Driver IC / FPC connector.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC320240-2.8INTM

Driver Datasheet: ST7789V2

More for this 2.8 Inch TFT Display

This 2.8 inch TFT display consists of a 2.8” IPS LCD with a-Si TFTs, an ST7789V2 IC driver, SPI interface, an FPC cable connector, and 4 LEDs as backlight.

Display Effect

The IPS TFT display is the most expansive use of TFT LCDs comparing TN-TFT and VA-TFT. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS LCD Shield for iPhone 11.

We are proud to offer this 2.8 inch TFT LCD display for various applications. Its IPS LCD and a-Si TFT technology provide high-quality images with fast response times and a wide 160-degree viewing angle.

Meanwhile, the 320x240 resolution and 800:1 contrast ratio result in clear and vivid images from any angle.

Thanks to its 3ms response time, we will never see ghosting or blurring when watching videos or using the display.

With 380 Nits of brightness, it offers a better viewing experience and makes colors appear more vivid and sharper.

Other Benefits

The ST7789V2 IC driver and SPI interface makes it easy for engineers to develop and debug software.

And the FPC cable connector saves space in small devices like handheld and portable devices. It helps factories integrate into products easily.

To enhance the user experience, you can add a capacitive or resistive touch screen. This provides a simple and intuitive way to control the device, giving your product a sleek, seamless look.
