2.8'' TFT LCD Touch Screen 240x320, SPI Interface, JD9852 Controller

Model / SKU: GFC320240V1-2.8INTM

2.8'' TFT LCD is an IPS display With Capacitive TouchScreen, Resolution (240x320), Wide viewing angle (160°), Response time (3ms), Contrast (800:1).

Diagonal Dimension (Inches)

2.8

LCD Active Area WxHxD (mm)

43.20 x 57.60

Display Mode

IPS / Transmissive

Interface Type

SPI Interface (MCU/RGB/MIPI Customizable)

Model / Series Name	GFC320240V1-2.8INTM
Diagonal Dimension (Inches)	2.8
Dots WxH	320 x 240

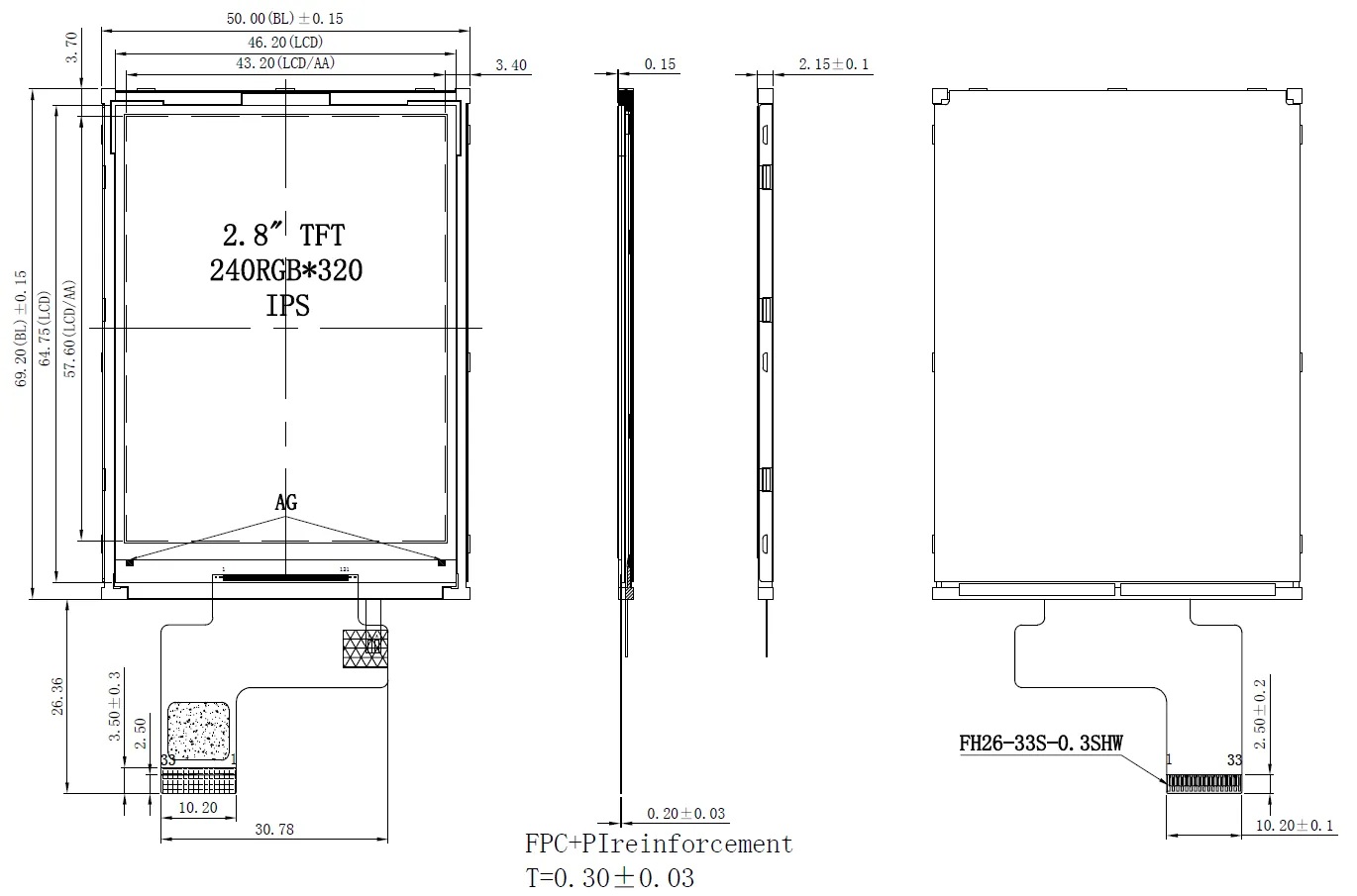

Module Size WxHxD (mm)	50.00 x 69.20 x 2.15
LCD Active Area WxHxD (mm)	43.20 x 57.60
Display Mode	IPS / Transmissive
Viewing Angle	Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;
IC	JD9852
Interface Type	SPI Interface (MCU/RGB/MIPI Customizable)
Logic Power Supply Voltage	3.0V to 3.6V
Backlight	4 LEDs
Luminance	380 cd/m2
Touch Panel	Optional RTP or CTP

Model / Series Name

GFC320240V1-2.8INTM

Diagonal Dimension (Inches)

2.8

Dots WxH

320 x 240

Module Size WxHxD (mm)

50.00 x 69.20 x 2.15

LCD Active Area WxHxD (mm)

43.20 x 57.60

Display Mode

IPS / Transmissive

Viewing Angle

Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;

JD9852

Interface Type

SPI Interface (MCU/RGB/MIPI Customizable)

Logic Power Supply Voltage

3.0V to 3.6V

Backlight

4 LEDs

Luminance

380 cd/m2

Touch Panel

Optional RTP or CTP

Product highlights

Wide Viewing Angle: The IPS panel provides a wide viewing angle of 160 degrees, making it look great from any direction.
Sharp Image Clarity: The resolution of 320x240 and contrast of 800:1 allow us to see sharp and clear images.
Interactive Design: You can add a resistive or capacitive touch screen to simplify product design. That can enhance the user experience and provide a simple way to control without additional buttons or input devices.
Easy Development: The JD9852 controller and SPI interface are both simple. Engineers can quickly develop the code to fix it. With the help of the FPC cable connector, factories can easily integrate it into the products.
Customizable Solution: You can customize your TFT display solution to meet specific requirements.

Product description

This 2.8” TFT LCD Touch Screen is an IPS display Module with IPS panel / Active-Matrix TFTs / Resolution of 320×240 / Contrast ratio of 800:1 / 3ms Response Time / Optional Touchscreen / SPI Interface / JD9852 Controller / FPC connector.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC320240V1-2.8INTM

Driver Datasheet: JD9852

More for this 2.8” TFT LCD TouchScreen

This 2.8” TFT LCD consists of a 2.8” IPS panel with a-Si TFTs, an JD9852 IC controller, SPI interface, an FPC cable connector, and 4 LEDs as backlight.

Display Effect

Compared with TN-TFT and VA-TFT, IPS TFT display is the most widely used TFT LCD. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS screen for iPhone 11.

This 2.8” TFT LCD is a standout product with its advanced technology and high-quality features. Its IPS panel and a-Si TFT technology provide superior image quality, a fast response time, and a wide 160-degree viewing angle.

So images remain clear and vivid from any angle. This sets it apart from other displays with limited viewing angles or low-quality images.

Additionally, the 3ms response time is faster than many competing displays, meaning you will never experience ghosting or blurring during use.

The brightness of 380 Nits allows for an even better viewing experience and enhances the vividness and sharpness of colors.

Other Benefits

The JD9852 controller is a 240RGB x 320 dots, 262K color, with internal GRAM, a-Si TFT LCD Single Chip Driver. Along with the SPI interface, this LCD makes software development and debugging a breeze for engineers.

The compact FPC cable connector also saves valuable space in handheld and portable devices, making it an excellent choice for products where space is limited.

With a resistive or capacitive touchscreen, your product will be different. It can offer a simple and intuitive way to control the device. That help to create a simple look for your product, making it stand out in the marketplace.
