3.5” TFT Display 480x320 with Touchscreen, IC ST7796S Controller, MCU Interface

Product highlights

• Wide Viewing Angle: The IPS technology provides a wide viewing angle of up to 160 degrees, making images remain clear and vivid from any angle.
• Sharp Image Clarity: The resolution of 480x320 and contrast of 800:1 allow us to see sharp and clear images. So, we can use this 3.5” TFT display in any portable, handheld digital LCD with excellent color representation.
• Easy Integration: The ST7796S controller and an easy-to-use MCU interface are simple. Engineers can quickly develop the program without any clock signal or synchronization signal operating code. With the help of the FPC cable connector, factories can easily integrate it into the products.
• Touch Screen Option: You can select a capacitive or resistive touch screen to provide an interactive and intuitive way to control the device without additional buttons or input devices.

Product description

This 3.5 inch TFT LCD is an IPS display Module with IPS panel / Active-Matrix TFTs / Resolution of 320×240 / Contrast ratio of 800:1 / 3ms Response Time / Optional Touchscreen / MCU Interface / ST7796S Controller IC / FPC connector.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

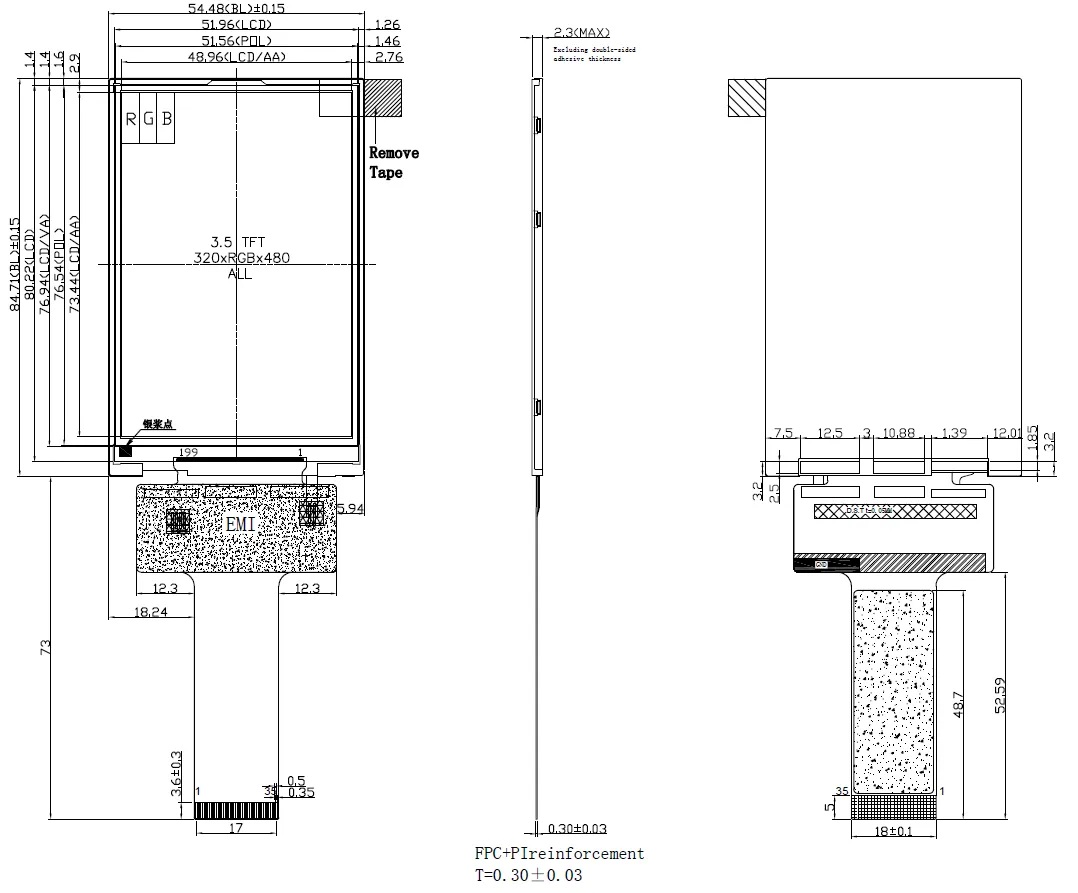

Product Datasheet: GFC320480-3.5INTM

Driver Datasheet: ST7796S

More for this 3.5” TFT Display

This 3.5 inch TFT display consists of a 2.8” IPS LCD with a-Si TFTs, an ST7796S IC controller, MCU interface, an FPC cable connector, and 6 LEDs as backlight.

Display Effect

The IPS TFT display is the most expansive use of TFT LCDs comparing TN-TFT and VA-TFT. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS LCD Shield for iPhone 11.

This 3.5’’ TFT LCD display provides a wide viewing angle of up to 160 degrees, making images clear and vivid from any direction.

Meanwhile, its resolution of 480x320 can satisfy any application asking for a small color display, such as home appliances, medical devices, or industrial instruments.

Furthermore, a contrast ratio of 800:1 can provide deeper blacks and brighter whites for accurate color representation. The 3ms response time ensures you can operate the device smoothly.

Its brightness of 480 Nits can make colors sharper, and reduce eye strain during extended use.

Other Benefits

The MCU interface and the ST7796S driver are both easy to use and well-documented. So, engineers can develop and debug the display system with Arduino or Raspberry Pi.

The FPC cable connector can save space in small applications. And it is so flexible that factories can easily integrate it into the product. Meanwhile, you can customize the shape of FPC to fix your requirement, too.

You can add a capacitive or resistive touch screen (cheaper) to provide an interactive and intuitive way to control the device. So, your product has no additional buttons or a separate input device. This can give the product a seamless and clean look and enhances the user experience.

Your Requirement?

In case the above parameters do not meet your requirements, contact Go2Display at sales@go2display.com for a custom TFT display solution.

We are always willing to work with you.
