5.5 inch AMOLED Display with Touchscreen, 1080×1920

Model / SKU: GFO10801920-5.5ANT

This 5.5-inch AMOLED display has 1080x1920 resolution, and a multi-touch capacitive touchscreen. An All-in-One portable display solution

Diagonal Dimension (Inches)

5.5

Screen Active Area WxH (mm)

59.40 x 190.08

Display Mode

AMOLED

Interface Type

40 pins MIPI

Model / Series Name	GFO10801920-5.5ANT
Diagonal Dimension (Inches)	5.5
Dots WxH	1080×1920 FHD
Outline Size WxHxD (mm)	81.00 x 138.20 x 1.70
Screen Active Area WxH (mm)	59.40 x 190.08
Display Mode	AMOLED
Viewing Angle	Left: 85 / Right: 85 / Top: 85 / Bottom: 85 degrees;
Controller	HDMI Driver Board
Interface Type	40 pins MIPI
Logic Power Supply Voltage	3.0V to 3.6V
Contrast	6000:1 (Typ.) (TM)
Luminance	345 cd/m2
Touch Panel	Multi-touch PCAP

Model / Series Name

GFO10801920-5.5ANT

Diagonal Dimension (Inches)

5.5

Dots WxH

1080×1920 FHD

Outline Size WxHxD (mm)

81.00 x 138.20 x 1.70

Screen Active Area WxH (mm)

59.40 x 190.08

Display Mode

AMOLED

Viewing Angle

Left: 85 / Right: 85 / Top: 85 / Bottom: 85 degrees;

Controller

HDMI Driver Board

Interface Type

40 pins MIPI

Logic Power Supply Voltage

3.0V to 3.6V

Contrast

6000:1 (Typ.) (TM)

Luminance

345 cd/m2

Touch Panel

Multi-touch PCAP

Product highlights

AMOLED: AMOLED displays feature better color reproduction, higher contrast, wider viewing angles, faster response time, and less power consumption.

Multi-touch Support: This display supports multi-touch, up to 5 points. It works well with Windows 10/8.1/8 OS. It is ideal for various applications.

Product description

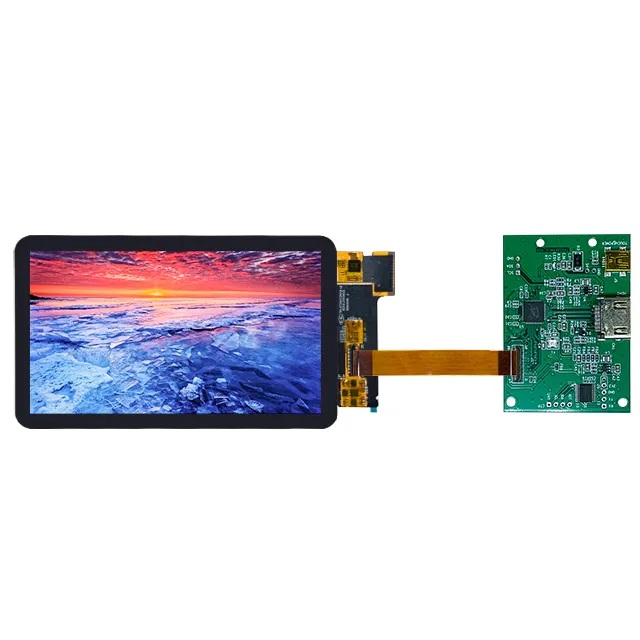

This 5.5” AMOLED display is a kit with Active-Matrix OLED panel / Resolution of 1080×1920 FHD / Capacitive Touchscreen / MIPI Interface / HDMI Driver Board.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFO10801920-5.5ANT

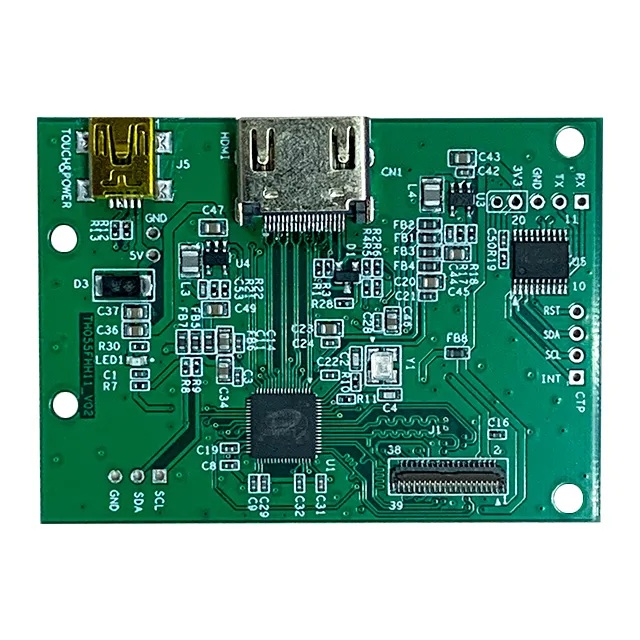

Driver Datasheet: HDMI Driver Board

More for this 5.5 inches AMOLED Display

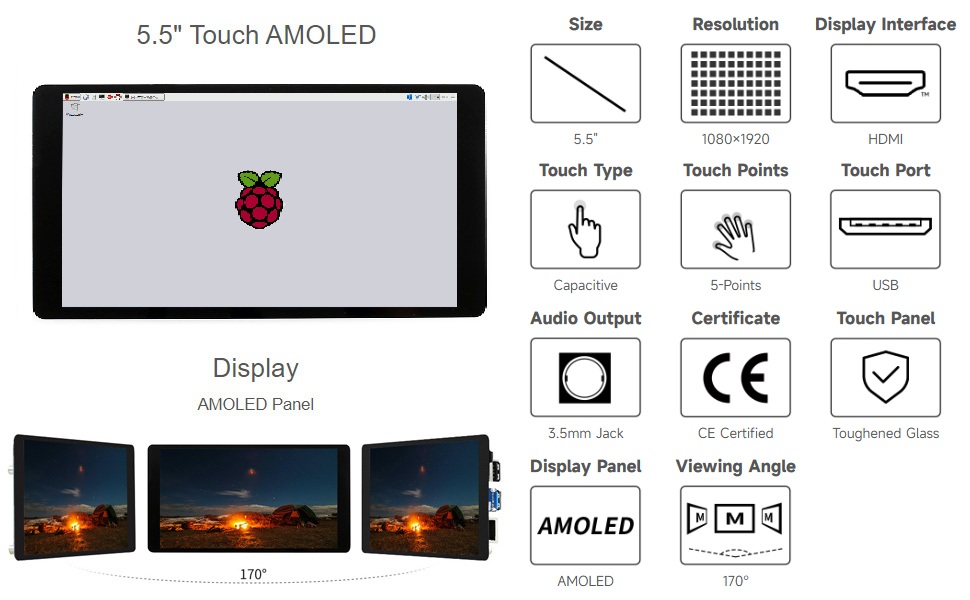

5.5 inch AMOLED Display with Touchscreen, 1080×1920 features

This 5.5-inch AMOLED display has high contrast, color depth, and wide viewing angles. The 1080x1920 resolution can show content that is clear and full of detail.

The touch-enabled AMOLED module has a multi-touch capacitive touch panel. It works with a variety of devices, such as Raspberry Pi, Jetson Nano, and regular desktop and laptop computers.

You do not need to use any display driver when using it with a Raspberry Pi for different operating systems like Raspbian and Ubuntu.

It also works with Windows 10/8.1/8/7 and supports five-point touch and plug-and-play. Thus, users can use it as a computer monitor.

Your Requirement?

This 5.5” AMOLED display can be used as an all-in-one portable display solution for computers and devices because it has a touchscreen and works with a wide range of devices.

Go2Display is ready to provide custom OLED display solutions to meet your unique requirements.
