Monochrome 1.3'' 128x64 OLED Graphic Display Module

Product highlights

Monochrome 1.3” 128x64 OLED Graphic Display Modules are popular OLED parts in many communities, like Adafruit and Waveshare.

As an OLED manufacturer, Go2Display supplies wholesale OLED display modules at factory prices.

If you have a special requirement, a custom OLED module solution is also available.

Product description

This 128x64 OLED Graphic Display is a monochrome OLED Module with a 1.3 inch PMOLED panel / 128x64 resolution Screen / 3/4-wire SPI, I2C Interface /SH1106 Controller IC / COG with PCB design.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFOP1.3-12864NT

Control IC Datasheet: SH1106

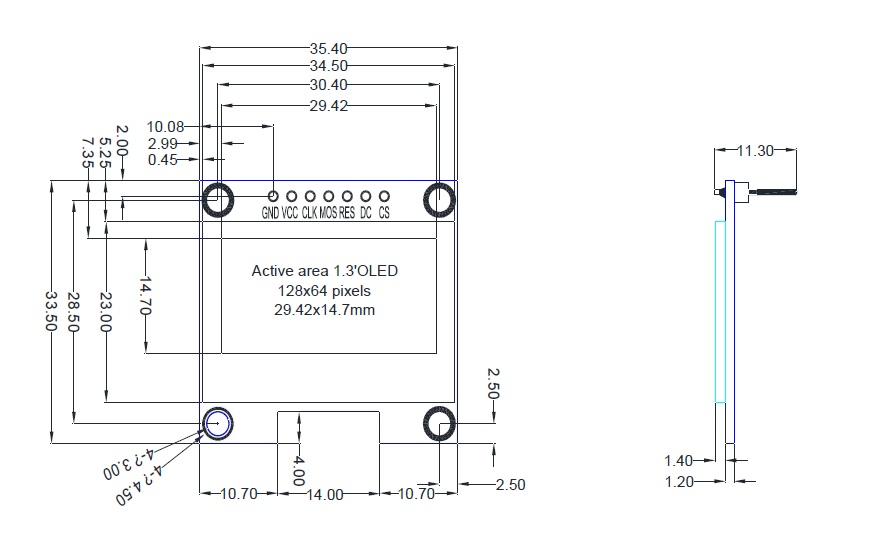

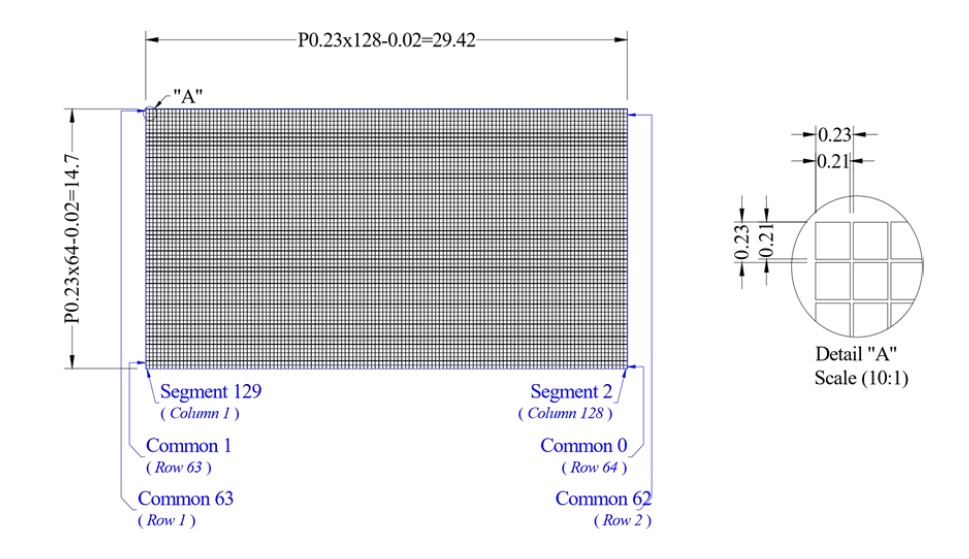

Monochrome 1.3” OLED Graphic Display Module Datasheet

More Details

This OLED display module is only 1.3 inches, bigger than the 0.96” one. Both of them have the same resolution, but this 1.3’’ screen can give you a better viewing area.

Its high contrast makes them easy to read. The resolution is 128x64 pixels, and SH1106 controller IC can turn each pixel on or off.

OLED emits its own light, so there is no need for a backlight. Therefore, it reduces power consumption. Users like this clear screen.

This PMOLED module has an SPI, I2C interface so you can drive it quickly in an Arduino. (with the u8glib library sample code).

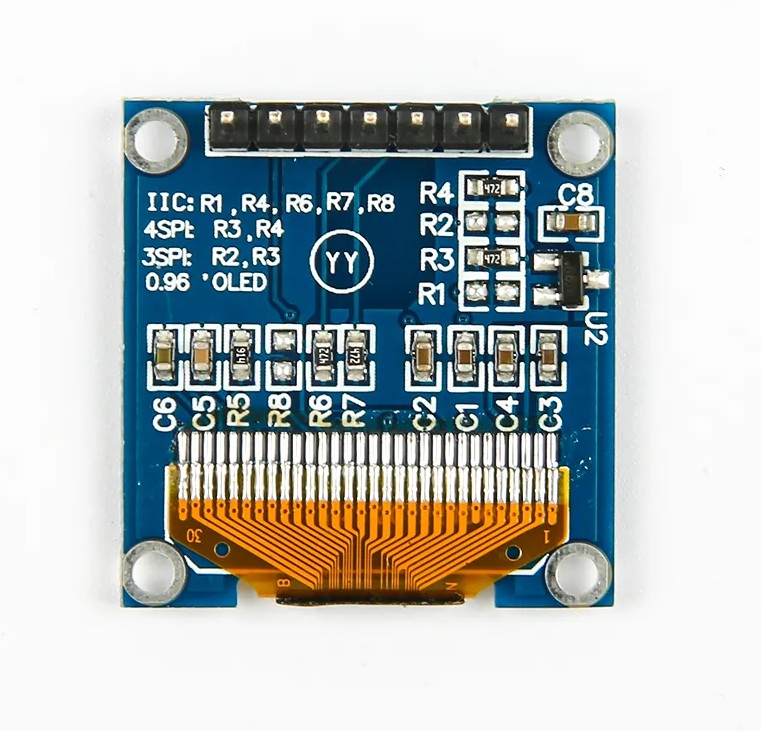

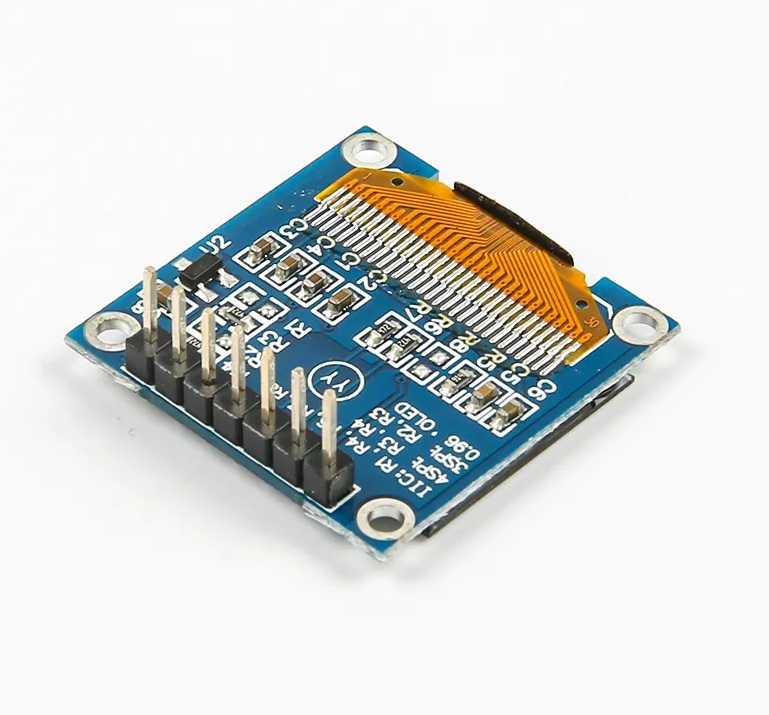

The default interface is SPI. However, you can change it to I2C by moving the SPI resistor to the I2C position on the back.

The module can work with voltages between 3.3V and 5V, so connecting it directly to a 3.3V controller board is fine.

But you want to use a 5V MCU (like an Arduino Uno) to control this display module. In that case, you will need a logic-level translator.

Custom OLED Display Service

Overall, this 1.3 inches mono OLED graphic display module is a reliable and flexible way to meet your screen needs.

All our products come with a 12-month warranty. ISO 9001:2001 and RoHS compliance ensures high-quality components and support.

If you need a more special OLED display module for your project or product. Call us today for a custom OLED display solution.
