Monochrome 128x32 I2C OLED Graphic Display Supplier Supplier

Monochrome 128x32 I2C OLED Graphic Display Supplier

Model / SKU: GFOP0.91-12832NT

This Monochrome 128x32 I2C OLED Graphic Display is thinner, better than an LCD mobule. You can easily connect it to projects and devices with I2C Interface.

Display Mode

PMOLED (Passive Matrix) Graphic

Resolution

128 x 32 pixels

Active Area WxH (mm)

22.384 x 5.584

Interface Type

I2C Interfaces

Model / Series Name	GFOP0.91-12832NT
Screen Size (Inches)	0.91''
Display Mode	PMOLED (Passive Matrix) Graphic
Resolution	128 x 32 pixels
Display Color	White, Blue Optional
Module Size WxHxD (mm)	12.00 x 38.00 x 2.40
Active Area WxH (mm)	22.384 x 5.584
Driver IC	SSD1306
Drive Duty	1/32 Duty
Interface Type	I2C Interfaces
Operating Voltage	3.3V/5V
Operating Temperature	-30 ~ +70ºC
Storage Temperature	-40 ~ +80ºC

Model / Series Name

GFOP0.91-12832NT

Screen Size (Inches)

0.91''

Display Mode

PMOLED (Passive Matrix) Graphic

Resolution

128 x 32 pixels

Display Color

White, Blue Optional

Module Size WxHxD (mm)

12.00 x 38.00 x 2.40

Active Area WxH (mm)

22.384 x 5.584

Driver IC

SSD1306

Drive Duty

1/32 Duty

Interface Type

I2C Interfaces

Operating Voltage

3.3V/5V

Operating Temperature

-30 ~ +70ºC

Storage Temperature

-40 ~ +80ºC

Product highlights

Monochrome 128x32 I2C OLED Graphic Display Modules are popular OLED parts in many communities, like Adafruit and Waveshare.

As an OLED manufacturer, Go2Display supplies wholesale OLED display modules at factory prices.

If you have a special requirement, a custom OLED module solution is also available.

Product description

This 128x32 OLED Graphic Display is a monochrome OLED Module with a 0.91 inch PMOLED panel / 128x32 resolution Screen / I2C Interface /SSD1306 Microchip IC / COG with PCB design.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFOP0.91-12832NT

Control IC Datasheet: SSD1306

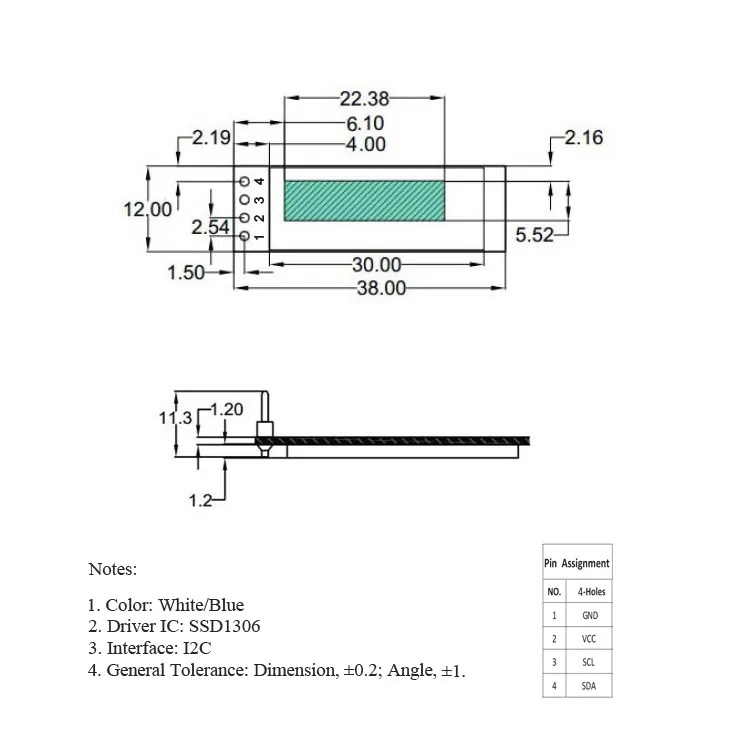

Monochrome 0.91” OLED Graphic Display Module Datasheet

More Details

This OLED display module has the similar screen size of the 0.96” one. But it has a lower resolution of 128 x 32 pixels, while the 0.96” has 128 x 64.

It emits its own light without a backlight. Therefore, it uses less power and is thinner than the LCD. And that is why it has such a high contrast ratio. Its high contrast makes them easy to read.

Driver IC SSD1306 provides an I2C interface. The connector only needs 3 pins to talk with the built-in chip.

The easy-to-use I2C interface so you can drive it easily in an Arduino project.

Remember that OLED displays have thousands of OLEDs. Each pixel is a little organic LED. It will start to dim if it stays on for more than 1000 hours.

If you want the display always to be the same brightness, please turn off the display (set the pixels off) when you don’t need it.

The power consumption depends on how many pixels are on. On average, it uses about 20mA on the 3.3V supply.

The OLED driver has a simple switch-cap charge pump that turns 3.3v-5v into a high-voltage drive for the OLEDs. This is one of the easiest ways to add an OLED to your project.
