LCD Graphic Displays
128x64 LCD Graphic Display Module Arduino
Model / SKU: GFG12864NT
128x64 LCD Graphic Display Modules are at wholesale price. Easily connect it to your Arduino, Raspberry PI project with 8-bit Parallel Interface.
- Display Format
- 128x64 Dots Matrix
- LCD Active Area WxH (mm)
- 72.00 x 40.00
- Interface Type
- 6800 8-bit Parallel
- Viewing Direction
- 6:00
Need another size, interface or touch option? Explore customization.
Technical specifications
| Model / Series Name | GFG12864NT |
|---|---|
| LC Panel Type | FSTN/STN |
| Display Format | 128x64 Dots Matrix |
| Module Size WxHxD (mm) | 93.00 x 70.00 x 13.5 |
| LCD Active Area WxH (mm) | 72.00 x 40.00 |
| Dot Pitch | 0.52 x 0.52 |
| Dot Size (mm) | 0.48 x 0.48 |
| Control IC | KS0107B,KS0108B or Equivalents |
| IC Package Type | COB |
| Interface Type | 6800 8-bit Parallel |
| LED Backlight Color | Blue / Yellow-Green / Grey |
| Viewing Direction | 6:00 |
| Display Type | Positive or Negative |
| Logic Power Supply Voltage | 3.3V/5V |
| Operating Temperature | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
Description & drawings
Product highlights
Easy to Use: 128x64 LCD Graphic Display Module has built-in driver IC, which can be easily integrated with your Arduino or Raspberry Pi systems with an 8-bit parallel interface. It is also customizable for any requirement.
Low Price: As an LCD manufacturer, Go2Display supplies 128x64 LCD Graphic Display Module at wholesale price.
Product description
This 128x64 LCD Graphic display is an LCD Module with FSTN/STN panel / 128x64 Dots Matrix Screen / 6800 8-bit Parallel Interface / KS0107B,KS0108B Driver IC / COB.
The high quality, low price product is always our long-term goal.
Technical Details
Download Product References Below
Product Datasheet: GFC2004NT
Control IC Datasheet: KS0107B,KS0108B or Equivalents

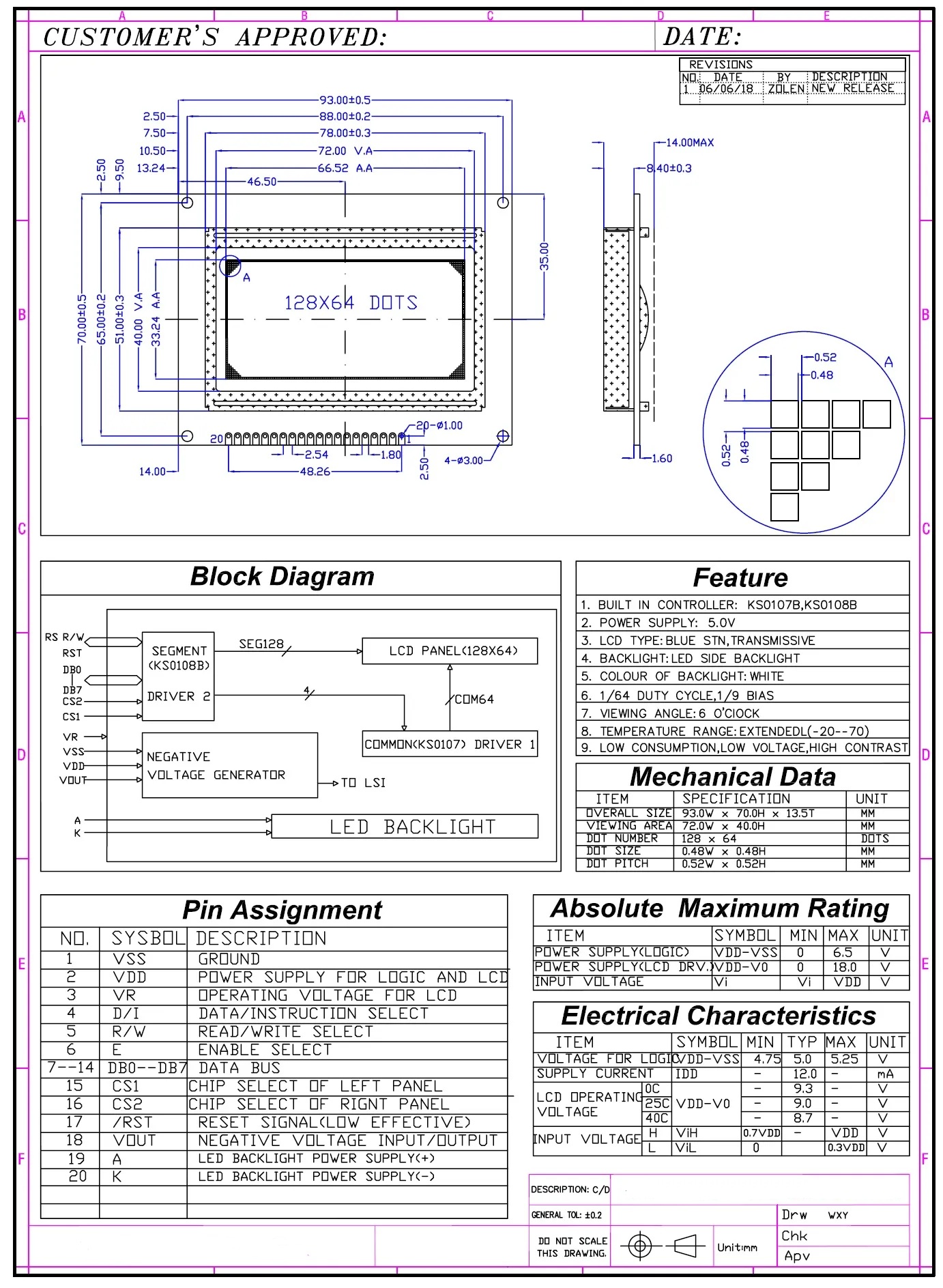

128x64 LCD Graphic Display Datasheet
More Details
This 128x64 LCD Graphic Display has superior performance and reliability.
It features a 128x64 dots matrix screen with an FSTN/STN LC Panel type. Which ensures enough space to show text or monochrome images.
This graphic LCD module is 93.00 x 70.00 x 13.5mm and has an active area of 72.00 x 40.00mm, providing ample screen space for displaying your data.
The dot pitch is 0.52 x 0.52mm, with a dot size of 0.48 x 0.48mm, resulting in easy-to-read and interpret graphics.
This LCD module has a built-in KS0107B, KS0108B, or equivalent control IC and COB IC package type.
The PCB design has reliable performance and long-lasting durability.
Engineers can quickly integrate with your systems with an 8-bit parallel interface type.

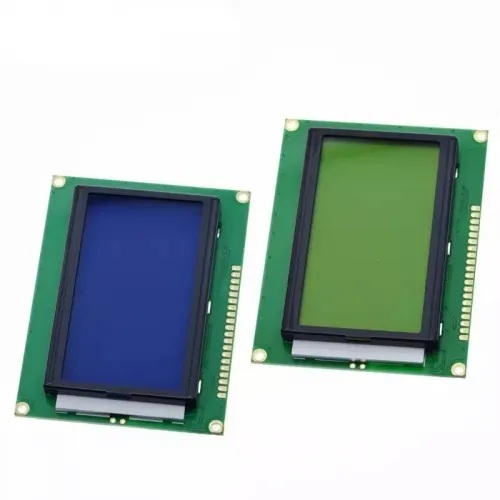

It is available with an LED backlight in Blue, Yellow-Green, or Grey. Therefore, you can customize the display to match your branding or aesthetic preferences.
Furthermore, it can be configured as a positive or negative display type. That means it has more performance for various requirements.
The display operates on both 3.3V and 5V logic power supply voltages. So you choose the best for your specific needs.
It can withstand harsh environments because it has an operating temperature range of -20 ~ +70ºC and a storage temperature range of -30 ~ +80ºC.
If you’re looking for a reliable, high-performance LCD graphic display, look no further.
Contact us today to learn more about this display module and how it can help take your business to the next level.
Additional information
| Resolution | 240×240 |
|---|---|
| Interface | Parallel, MCU, SPI, RGB |
| Touch screen | None |
