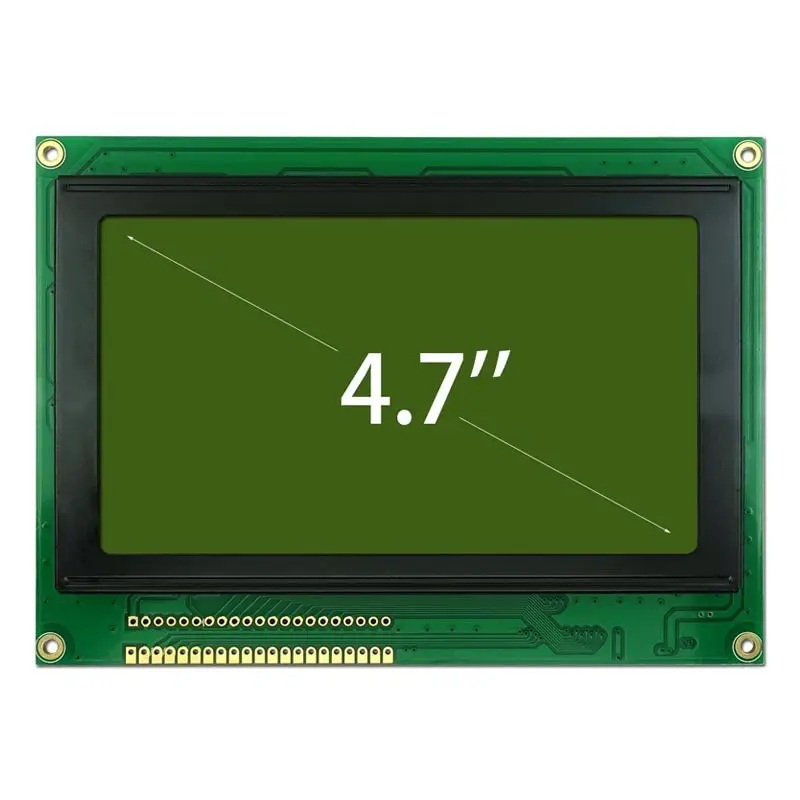

240x128 Graphic LCD Arduino Display Module
Model / SKU: GFG240128NT
240x128 Graphic LCD Arduino Modules are at wholesale price. Easily connect it to your Arduino, Raspberry PI project with 8-bit Parallel Interface.
- Display Format
- 240x128 Dots Matrix
- LCD Active Area WxH (mm)
- 133.20 x 64.00
- Interface Type
- 6800 8-bit Parallel, SPI Optional
- Viewing Direction
- 6:00
Need another size, interface or touch option? Explore customization.
Technical specifications
| Model / Series Name | GFG240128NT |
|---|---|
| LC Panel Type | FSTN/STN |
| Display Format | 240x128 Dots Matrix |
| Module Size WxHxD (mm) | 144.00 x 104.00 x 14.00 |
| LCD Active Area WxH (mm) | 133.20 x 64.00 |
| Dot Pitch | 0.45 x 0.45 |
| Dot Size (mm) | 0.40 x 0.40 |
| Control IC | T6963C or Equivalents |
| IC Package Type | COB |
| Interface Type | 6800 8-bit Parallel, SPI Optional |
| LED Backlight Color | Blue / Yellow-Green / Grey |
| Viewing Direction | 6:00 |
| Display Type | Positive or Negative |
| Logic Power Supply Voltage | 3.3V/5V |
| Operating Temperature | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
Description & drawings
Product highlights
This 240x128 Graphic LCD has an expansive LCD display area with pixel-perfect accuracy for detailed graphics and text.
Its compact size and easy-to-use interface are good for easy integration into existing systems.
Providing various customizable options can meet your needs.
As a professional LCD manufacturer, we can offer an affordable price.
Product description
This 240x128 Graphic LCD Arduino Display is an LCD Module with FSTN/STN panel / 240x128 Dots Matrix Screen / 6800 8-bit Parallel Interface / T6963C Controller / COB.
The high quality, low price product is always our long-term goal.
Technical Details
Download Product References Below
Product Datasheet: GFG240128NT
Control IC Datasheet: T6963C or Equivalents

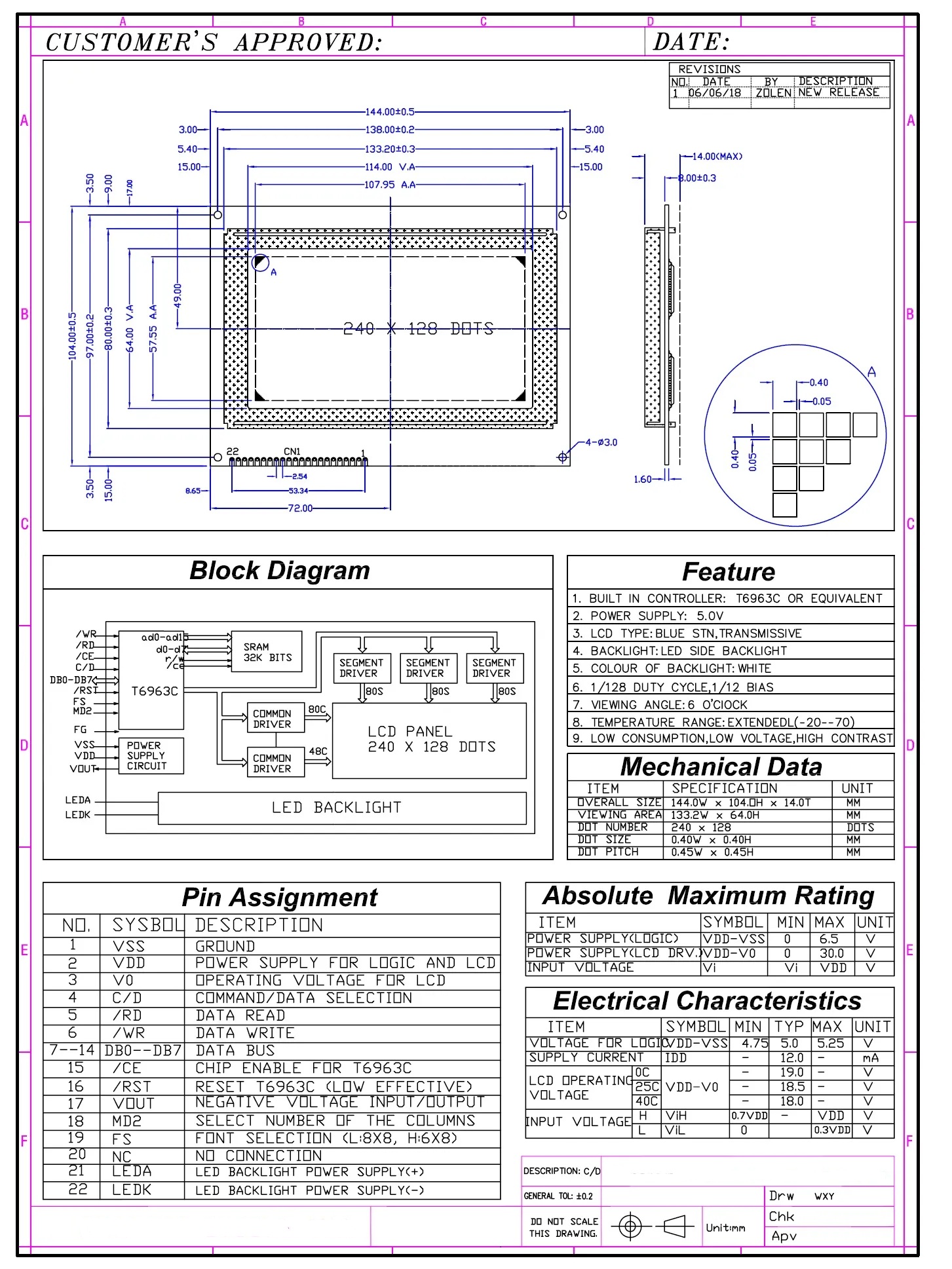

240x128 LCD Graphic Display Datasheet
More Details
Elevate your business applications with this 240x128 Graphic LCD designed to deliver crisp, clear visuals with exceptional reliability.
This high-quality FSTN/STN display is perfect, for industrial control panels to medical devices. A customizable service also provides the right solution for your specific use case.
It features a generous 240x128 dots matrix display format. It offers an expansive LCD active area of 133.20 x 64.00 mm, providing ample room for detailed graphics and text. The 0.45 x 0.45 mm dot pitch and 0.40 x 0.40 mm dot size ensure pixel-perfect accuracy.
At the same time, the T6963C control IC (or equivalents) delivers smooth, efficient performance.
The LCD module is housed in a compact module measuring just 144.00 x 104.00 x 14.00 mm. That is good for any space-constrained application. With a versatile interface supporting 6800 8-bit parallel and optional SPI, this Graphic LCD is easily integrated into your existing systems, like Arduino or Raspberry Pi.

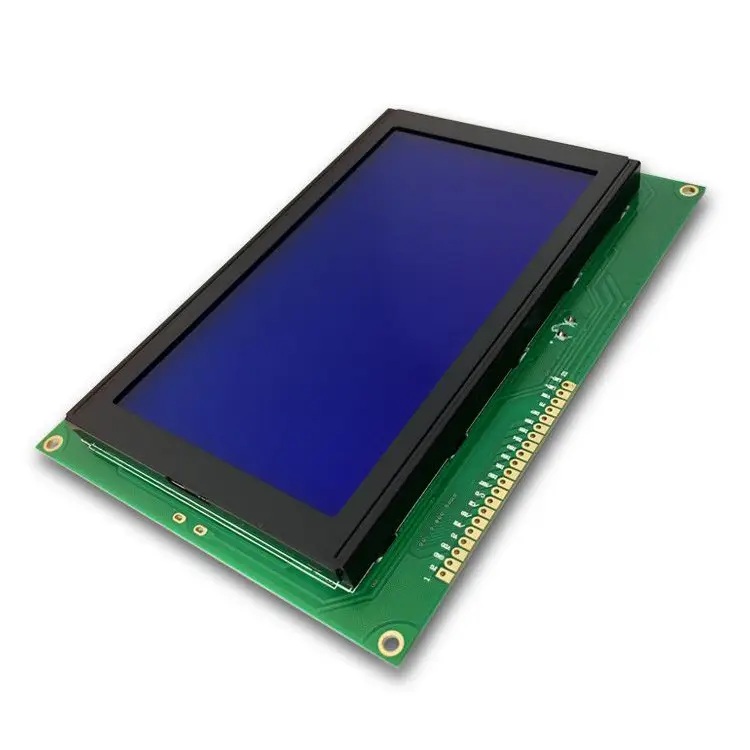

Choose from various backlight colours, including blue, yellow-green, and grey, to customize this Graphic LCD to your brand’s aesthetic. The side LED backlighting ensures even illumination, while the 6:00 viewing direction provides optimal visibility for users.
Whether you need a positive or negative display type, it covers your needs. This adaptable Graphic LCD operates at a 3.3V/5V logic power supply voltage and is designed to withstand temperatures ranging from -20 to +70ºC, ensuring reliable performance even in challenging environments.
Custom Graphic LCD Service
At Go2Display, we understand the importance of customization. That’s why we’re proud to offer custom display solutions tailored to your requirements. Plus, all our products are backed by a 12-month warranty and are ISO 9001:2001 and RoHS compliant, so you can trust the quality and dependability of every component.
Don’t miss out on the chance to enhance your business applications with the 240x128 Graphic LCD. Contact us today to learn more about this exceptional display solution and how we can help you achieve your project goals.
Additional information
| Resolution | 240×240 |
|---|---|
| Interface | Parallel, MCU, SPI, RGB |
| Touch screen | None |
