160x128 LCD Graphic Display Module, COB, FSTN
Model / SKU: GFG160128NT
160x128 LCD Graphic Display Arduino Modules are at factory price. Easily connect it to your Arduino, Raspberry PI project with 8-bit Parallel Interface.
- Display Format
- 160x128 Dots Matrix
- LCD Active Area WxH (mm)
- 92.76 x 74.20
- Interface Type
- 8-bit Parallel, SPI Optional
- Viewing Direction
- 6:00
Need another size, interface or touch option? Explore customization.
Technical specifications
| Model / Series Name | GFG160128NT |
|---|---|
| LC Panel Type | FSTN/STN |
| Display Format | 160x128 Dots Matrix |
| Module Size WxHxD (mm) | 129.00 x 102.00 x 14.50 |
| Visual area WxH (mm) | 101.00 x 82.00 |
| LCD Active Area WxH (mm) | 92.76 x 74.20 |
| Driver IC | T6963 or Equivalents |
| IC Package Type | COB |
| Interface Type | 8-bit Parallel, SPI Optional |
| LED Backlight Color | Blue / Yellow-Green / Grey |
| Viewing Direction | 6:00 |
| Display Type | Positive or Negative |
| Logic Power Supply Voltage | 3.3V/5V |
| Operating Temperature | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |

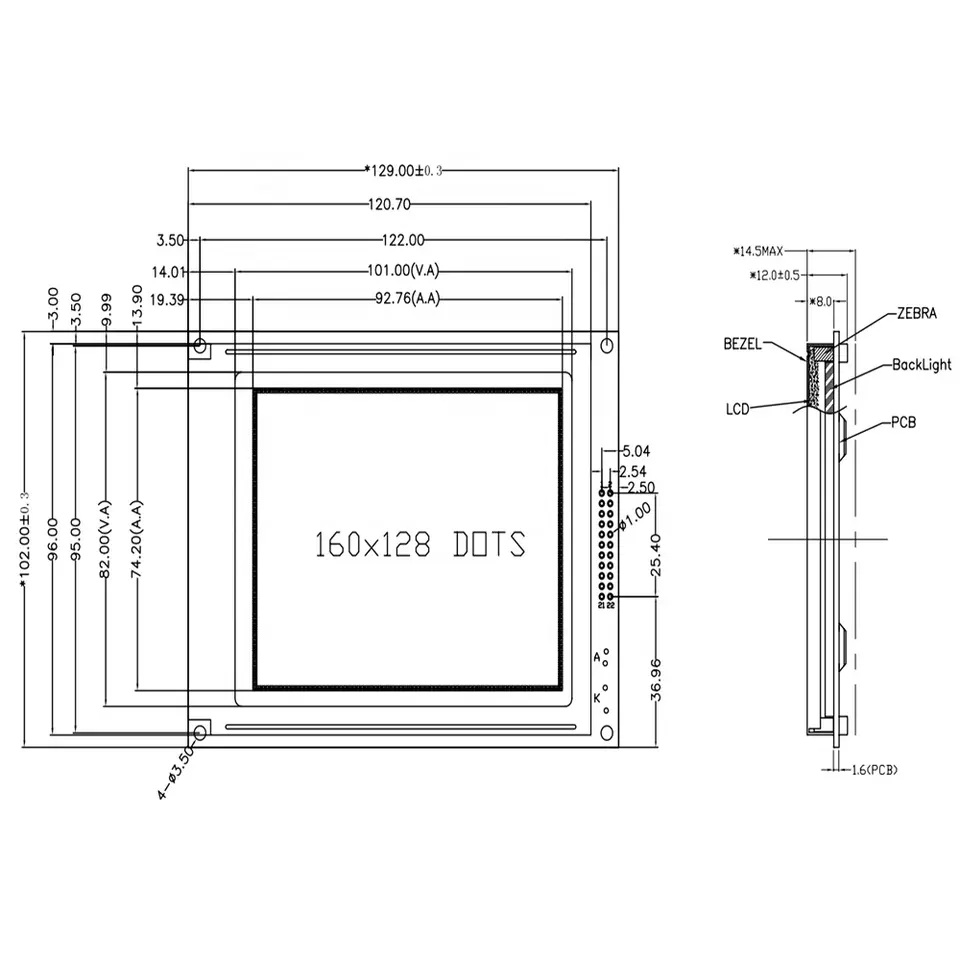

Description & drawings
Product highlights
This 160x128 LCD Graphic Display has an expansive area with pixel-perfect accuracy for detailed graphics and text.
Its compact size and easy-to-use interface are good for easy integration into existing systems.
Providing various customizable options can meet your needs.
As a professional LCD manufacturer, we can offer an affordable price.
Product description
This 160x128 LCD Graphic Display is a monochrome LCD Module with FSTN/STN panel / 160x128 Dots Matrix Screen / 8-bit Parallel Interface / T6963 Driver / COB design.
The high quality, low price product is always our long-term goal.
Technical Details
Download Product References Below
Product Datasheet: GFG160128NT
Control IC Datasheet: T6963 or Equivalents
160x128 Graphic LCD Display Datasheet
More Details
This 160x128 LCD Graphic display can be used in various industries and use-cases, including medical, industrial, and communication devices.
With its FSTN/STN LC panel type and 160x128 dots matrix display format, it promises to deliver clear visuals and unmatched reliability.
The 160x128 Graphic LCD features an active area of 92.76 x 74.20 mm for detailed graphics and text.
The T6963 driver IC ensures smooth, efficient performance, allowing you to focus on user experience.
The 160x128 Graphic LCD’s 8-bit parallel interface and optional SPI compatibility make integration easy.
This LCD display will work smoothly with the COB IC package type’s strong connectivity.
Choose from blue, yellow-green, or grey LED backlights to personalize your screen.
The display type can be positive or negative. Positive displays have dark pixels on light backgrounds, while negative displays have light pixels on dark backgrounds.
Choose the display type that matches your style choices and application context.
This LCD uses 3.3V or 5V logic power voltage. Its -20 to +70oC temperature range ensures reliable performance in tough situations.
Custom LCD Graphic Display Service
Go2Display offers custom LCD display solutions to meet your demands. That’s why we’re proud to offer customizable designs for this 160x128 LCD Graphic display.
All our products come with a 12-month warranty. ISO 9001:2001 and RoHS compliance ensures high-quality components and support.
Take use of the 160x128 LCD Graphic Display to improve your commercial applications. Call us today to learn about this display solution and how we can help you reach your project goals.
Additional information
| Resolution | 240×240 |
|---|---|
| Interface | Parallel, MCU, SPI, RGB |
| Touch screen | None |
