240x64 Graphic LCD Arduino Display Module
Model / SKU: GFG24064NT
240x64 Graphic LCD Arduino Modules are at factory price. Easily connect it to your Arduino, Raspberry PI project with 8-bit Parallel Interface.
- Display Format
- 240x64 Dots Matrix
- LCD Active Area WxH (mm)
- 127.16 x 33.88
- Interface Type
- 6800 8-bit Parallel, SPI Optional
- Viewing Direction
- 6:00
Need another size, interface or touch option? Explore customization.
Technical specifications
| Model / Series Name | GFG24064NT |
|---|---|
| LC Panel Type | FSTN/STN |
| Display Format | 240x64 Dots Matrix |
| Module Size WxHxD (mm) | 180.00 x 65.00 x 16.00 |
| LCD Active Area WxH (mm) | 127.16 x 33.88 |
| Dot Pitch | 0.53 x 0.53 |
| Dot Size (mm) | 0.49 x 0.49 |
| Control IC | RA6963 or Equivalents |
| IC Package Type | COB |
| Interface Type | 6800 8-bit Parallel, SPI Optional |
| LED Backlight Color | Blue / Yellow-Green / Grey |
| Viewing Direction | 6:00 |
| Display Type | Positive or Negative |
| Logic Power Supply Voltage | 3.3V/5V |
| Operating Temperature | -20 ~ +70ºC |
| Storage Temperature | -30 ~ +80ºC |
Description & drawings
Product highlights
This 240x64 Graphic LCD has an expansive LCD display area with pixel-perfect accuracy for detailed graphics and text.
Its compact size and easy-to-use interface are good for easy integration into existing systems.
Providing various customizable options can meet your needs.
As a professional LCD manufacturer, we can offer an affordable price.
Product description

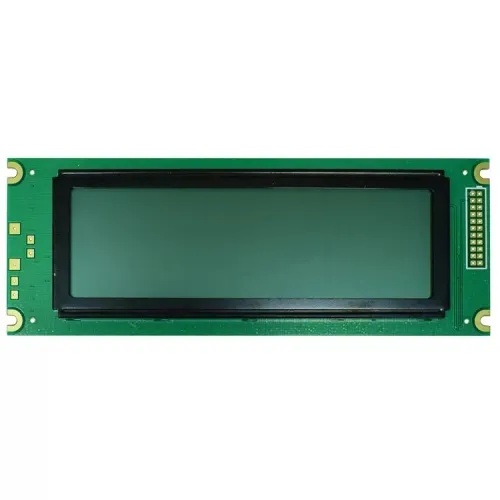

This 240x64 Graphic LCD Arduino Display is a monochrome LCD Module with FSTN/STN panel / 240x64 Dots Matrix Screen / 6800 8-bit Parallel Interface / RA6963 Controller / COB.
The high quality, low price product is always our long-term goal.
Technical Details
Download Product References Below
Product Datasheet: GFG24064NT
Control IC Datasheet: RA6963 or Equivalents

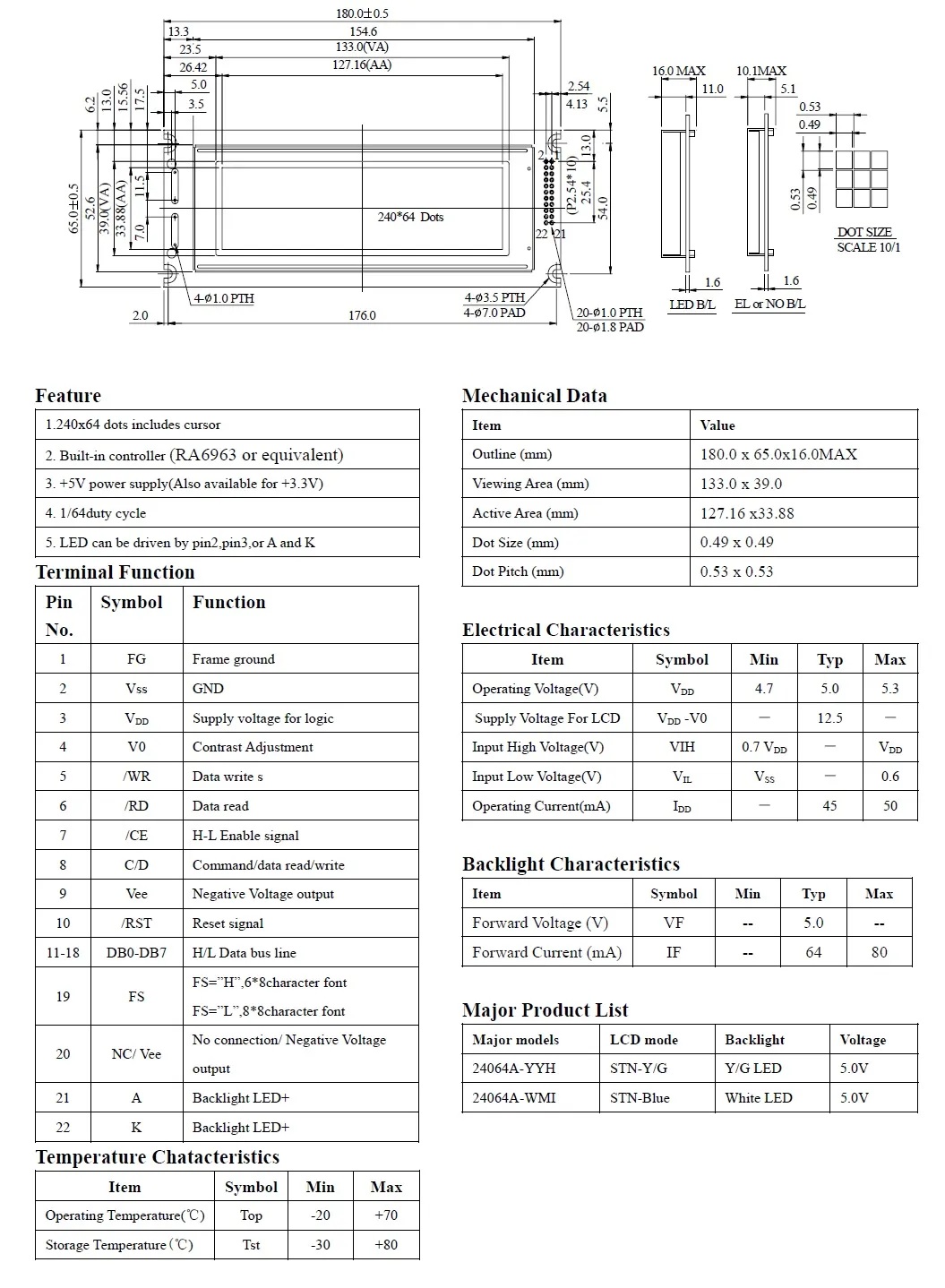

240x64 Graphic LCD Display Datasheet
More Details
This 240x128 Graphic LCD module is from our Go2Display. It works well for industrial or commercial applications. Its features and benefits are designed for displaying graphics, text and monochrome images.
The Graphic LCD module has an FSTN/STN LC panel type with a 240x64 dots matrix screen, displaying up to 15,360 pixels. Its 180.00 x 65.00 x 16.00 mm size is compact and easy to install. The active area is 127.16 x 33.88 mm gives enough space for clear content.
The RA6963 or equivalents control IC support both 6800 8-bit parallel and optional SPI interface. You can choose the interface for your needs and preferences. Meanwhile, engineers can quickly integrateit into existing systems, like Arduino, Raspberry PI.
Providing various customizable options can meet your needs.

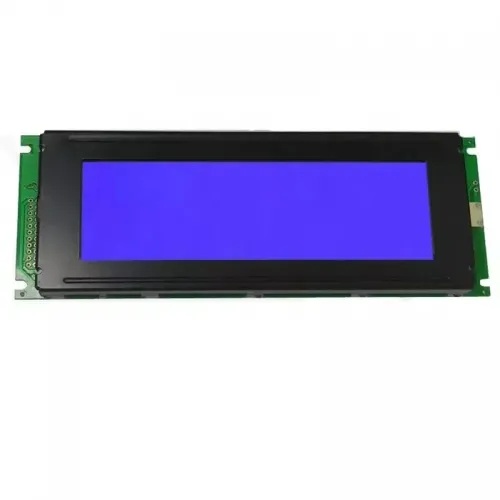

Depending on your design requirements, the LED backlight colour can be blue, yellow-green or grey.
The display type can be positive or negative, depending on the polarity of the voltage applied to the liquid crystals.
A positive display has dark pixels on a light background, while a negative mode has light pixels on a dark background. You can choose the display type that matches your aesthetic preferences and application environment.
The logic power supply voltage of this module is 3.3V or 5V. Its operating temperature range is -20 ~ +70ºC, while the storage temperature range is -30 ~ +80ºC. Therefore, this display module can withstand harsh environmental conditions and maintain its functionality.
Custom Graphic LCD Service
Furthermore, we accept custom display solutions according to your specific needs and specifications. You can customize various parameters of this module, such as size, shape, resolution, backlight color, interface type and more.
We also offer 12 months warranty for all our products to ensure customer satisfaction and quality assurance. All our products are ISO 9001:2001 and RoHS compliant for environmental protection and safety standards.
If you are interested in learning more about our 240x128 Graphic LCD module or want to place an order with us, please contact us today for more information.
