16x1 LCD Display Factory offers 6800, SPI, I2C Character LCDs

Product highlights

Are you looking for a reliable 16x1 LCD display factory or manufacturer at high quality and low price?

Here is the one that costs less money, consumes low power, and is easy to integrate into your project.

Product description

This 16x1 LCD display is a character LCD Module with FSTN/STN panel / 16x1 Characters / 6800 4-bit, 8-bit mode Parallel, SPI or I2C Interface / SPLC780 or Equivalents Microchip / PCB.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC1601NT

Control IC Datasheet: SPLC780 or Equivalents

More Details

The character LCD module can display 16 characters.

An SPLC780 microchip controller is compatible with the industry-standard HD44780 controller. The module uses a 6800 4/8-bit parallel interface.

And you can also customize your solution in SPI and I2C interface using RW1063 IC.

It can provide various color preferences, like black text on a yellow-green background or white text on a blue background. Furthermore, you can choose a Positive or Negative mode.

The built-in character set supports both English and Japanese text. You can find the complete character set in the datasheet.

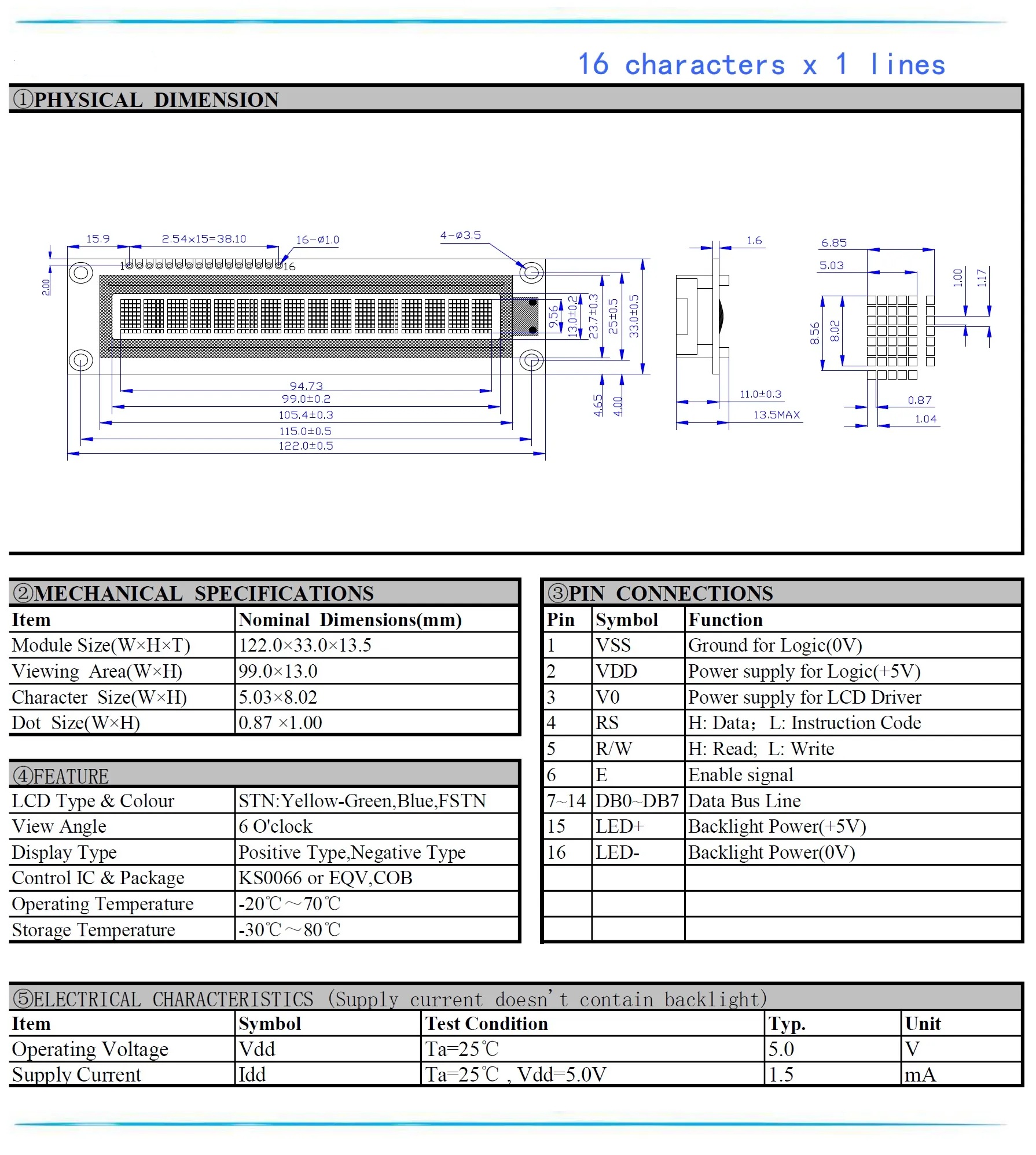

Drawing, Speecifications, 16 Pin Connections Datasheet

This LCD module is easily controlled by a microcontroller unit (MCU) such as PIC, Arduino, ARM, or Raspberry Pi.

Then you can use it in any embedded systems, like industrial devices, security systems, medical equipment, and handheld devices.

It has a wide operating temperature range (-20 ~ +70ºC). And it is compliant with RoHS regulations.
