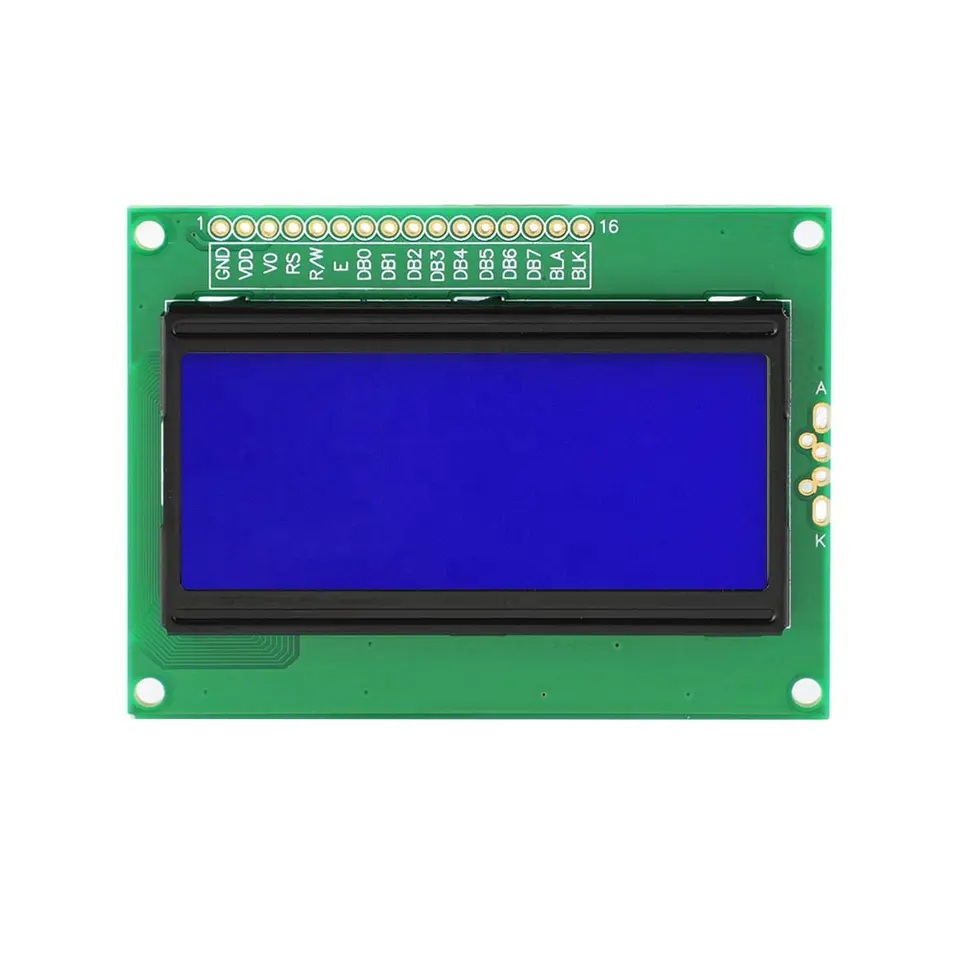

16x4 LCD Display Price Under $4, Character LCD Module 16 Pins

Model / SKU: GFC1604NT

16x4 LCD display price is always under $4 from China Factories. It consumes lower power and connect to an Arduino or Raspberry Pi based project.

Display Format

16x4 Characters

LCD Active Area WxH (mm)

62.00 x 27.00

Interface Type

6800 4-bit Parallel , 6800 8-bit Parallel

Viewing Direction

6:00

Model / Series Name	GFC1604NT
LCD Type	FSTN/STN
Display Format	16x4 Characters
Module Size WxHxD (mm)	87.00 x 60.00 x 13.00
LCD Active Area WxH (mm)	62.00 x 27.00
Character Size (mm)	2.99 x 4.82
Dot Pitch (mm)	0.55 x 0.55
Control IC	KS0066 or Equivalents:AIP31066 , HD44780, SPLC780 , ST7066
IC Package Type	COB
Interface Type	6800 4-bit Parallel , 6800 8-bit Parallel
Viewing Direction	6:00
Display Type	Positive or Negative
Logic Power Supply Voltage	5V
Operating Temperature	-20 ~ +70ºC
Storage Temperature	-30 ~ +80ºC

Model / Series Name

GFC1604NT

LCD Type

FSTN/STN

Display Format

16x4 Characters

Module Size WxHxD (mm)

87.00 x 60.00 x 13.00

LCD Active Area WxH (mm)

62.00 x 27.00

Character Size (mm)

2.99 x 4.82

Dot Pitch (mm)

0.55 x 0.55

Control IC

KS0066 or Equivalents:AIP31066 , HD44780, SPLC780 , ST7066

IC Package Type

COB

Interface Type

6800 4-bit Parallel , 6800 8-bit Parallel

Viewing Direction

6:00

Display Type

Positive or Negative

Logic Power Supply Voltage

Operating Temperature

-20 ~ +70ºC

Storage Temperature

-30 ~ +80ºC

Product highlights

Low Price: Our China factories can produce 16x4 LCD displays in large quantities at a price under $4.

Consume Low Power: They also consume less power than simple LED displays. That is important for portable devices.

Easy to Use: Their parallel interface allows for easy connection to microcontrollers in Arduino or Raspberry Pi based projects. And they are also available in SPI or I2C interfaces with another IC.

Product description

This 16x4 LCD display is a character LCD Module with FSTN/STN display type / 16x4 Characters / 6800 4-bit or 8-bit mode Parallel Interface / KS0066 or Equivalents Microcontroller IC / PCB.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

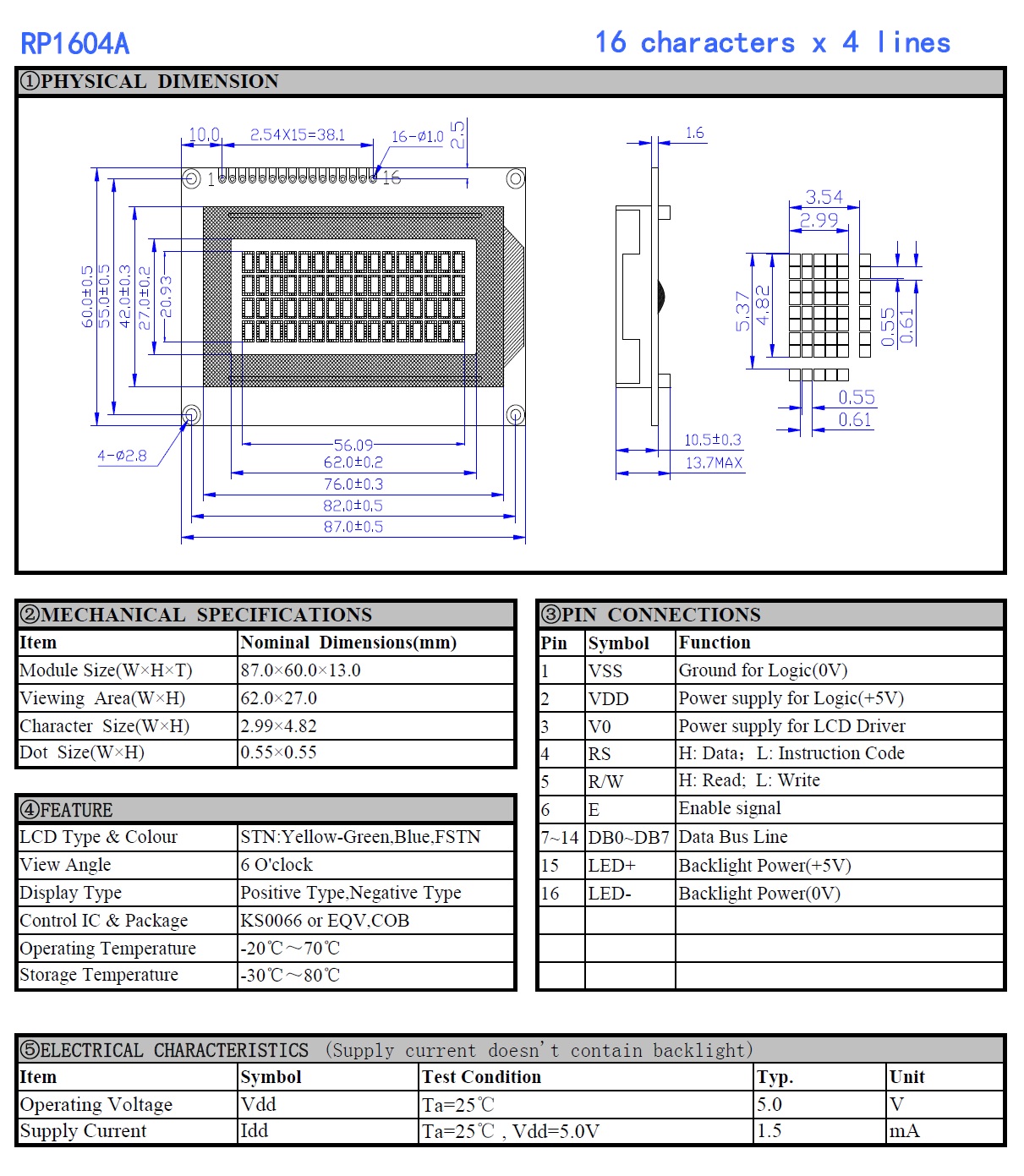

Product Datasheet: GFC1604NT

Control IC Datasheet: KS0066 or Equivalents

More Details

This character LCD module is a passive matrix LCD available in FSTN or STN panels. With 4 rows of 16 characters, this LCD model offers more space to display important information clearly and concisely. It is better than a 16x2 characters LCD.

These LCD modules are available in parallel 4-bit or 8-bit modes. Then, engineers can quickly get the datasheet and sample code. So they can use them in any Arduino or Raspberry Pi project.

The KS0066 or an equivalent IC provides stable and reliable performance.

Their compact and durable COB design is ideal for space-limited applications.

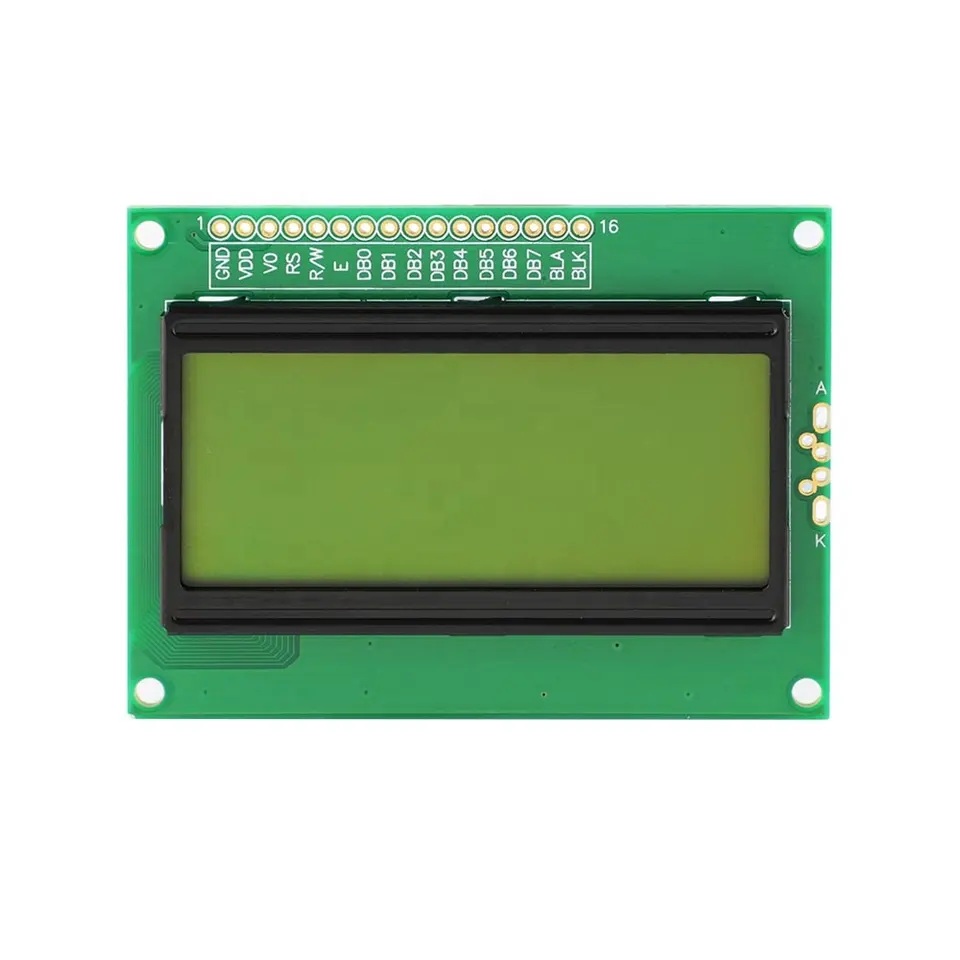

They offer multiple LED backlight color options (Blue/Green/Yellow-Green/Grey/Red/White) with optional positive or negative displays. That will match different design needs.

These character displays also have a wide operating temperature range of -20 to +70°C. You can use a power supply of 3.3V or 5V.

Uses and Applications

This 16x4 LCD display can show numbers and simple text. So you can use them in various industrial, medical, and consumer electronics products.

Electronic devices, like calculators and digital clocks, use it to show information.
With it, industrial control panels can display critical information about the operation of machinery or processes.
Medical devices use this character LCD to display vital signs, test results, or medication instructions.
Some low-end portable music players use it as their display part.

Overall, character LCDs are a cost-effective and reliable solution for displaying simple information in many applications.
