20x2 LCD Display Arduino Module Supplier with Datasheet, Pinout Library

Model / SKU: GFC2002NT

20x2 LCD displays are at factory price. We provide detailed datasheet and pinout library. Ensure you can develop any Arduino or Raspberry PI project easily.

Display Format

20x2 Characters

LCD Active Area WxH (mm)

73.50 x 11.50

Interface Type

6800 4-bit Parallel , 6800 8-bit Parallel, SPI, I2C

Viewing Direction

6:00

Model / Series Name	GFC2002NT
LCD Type	FSTN/STN
Display Format	20x2 Characters
Module Size WxHxD (mm)	116.00 x 35.00 x 12.80
LCD Active Area WxH (mm)	73.50 x 11.50
Character Size (mm)	3.20 x 5.55
Control IC	HD44780 or Equivalents:SPLC780, AIP31066, KS0066, RW1063 for SPI and I2C Interface
IC Package Type	COB
Interface Type	6800 4-bit Parallel , 6800 8-bit Parallel, SPI, I2C
LED Backlight Color	Blue / White / Yellow-Green / Grey
Viewing Direction	6:00
Display Type	Positive or Negative
Logic Power Supply Voltage	3.3V/5V
Operating Temperature	-20 ~ +70ºC
Storage Temperature	-30 ~ +80ºC

Model / Series Name

GFC2002NT

LCD Type

FSTN/STN

Display Format

20x2 Characters

Module Size WxHxD (mm)

116.00 x 35.00 x 12.80

LCD Active Area WxH (mm)

73.50 x 11.50

Character Size (mm)

3.20 x 5.55

Control IC

HD44780 or Equivalents:SPLC780, AIP31066, KS0066, RW1063 for SPI and I2C Interface

IC Package Type

COB

Interface Type

6800 4-bit Parallel , 6800 8-bit Parallel, SPI, I2C

LED Backlight Color

Blue / White / Yellow-Green / Grey

Viewing Direction

6:00

Display Type

Positive or Negative

Logic Power Supply Voltage

3.3V/5V

Operating Temperature

-20 ~ +70ºC

Storage Temperature

-30 ~ +80ºC

Product highlights

Easy to Use: Thanks to its various IC options, it can easily connect to any Arduino or Raspberry Pi project. And we also provide a well-documented datasheet, pinout library, and sample codes.

Low Price: Go2Display is an LCD manufacturer and can supply 20x2 LCD displays at factory price.

Low Power Consumption: Compared to color TFT displays, it consumes lower power.

Product description

This 20x2 LCD display is a character LCD Module with FSTN/STN panel / 20x2 Characters / Parallel, SPI or I2C Interface / HD44780 or Equivalents IC / COB.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC2002NT

Control IC Datasheet: HD44780 or Equivalents

20x2 lcd display datasheet

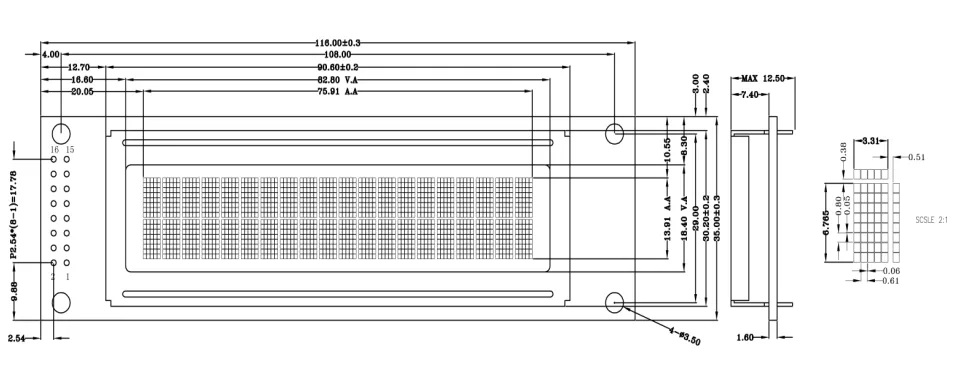

20x2 LCD Display Arduino Module Supplier datasheet drawing

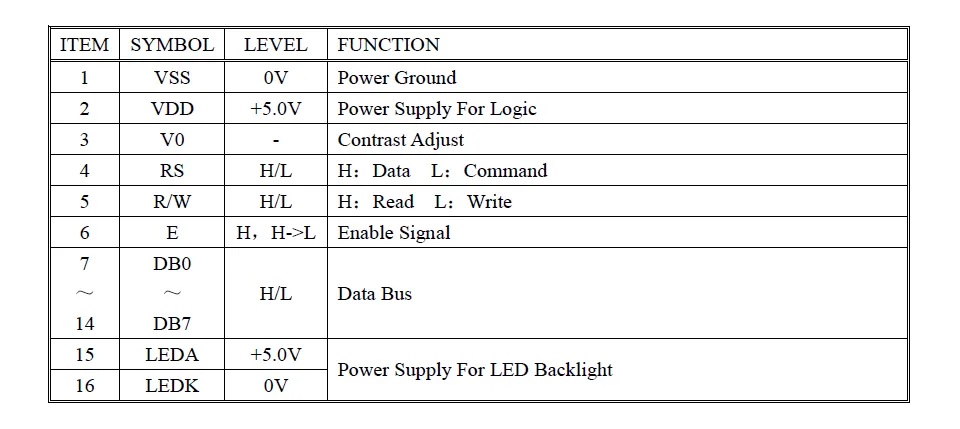

20x2 lcd display pinout Library

20x2 LCD Display Arduino Module Supplier pinout datasheet

Your Requirement?

This is just one of our popular character LCD Modules; In Go2Display, you can find more color displays like TFT displays and OLED displays.

If none of these part numbers meet your requirements in any term, contact us(sales@go2display.com), who are willing to work with you.

More Details

This 20x2 LCD display module consists of a 20x2 charactors screen with FSTN/STN panel, a built-in IC controller, 6800 4-bit/8-bit Parallel interface, PCB.

This character display is a passive matrix LCD (liquid crystal display) available in FSTN or STN panels. The LCD screen can show text with 20 characters by 2 lines.

This 20x2 LCD Display Module is an easy-to-use display module for your Arduino or Raspberry PI project. Its built-in controller can be easily connected to your Arduino board using standard I2C communication.

It is perfect for displaying text or numerical data. That makes projects more visually appealing.

This module allows you to easily create custom text, including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) options.

The COB (Chip On Board) design contains all components onto a single board. So it can reduce up to 40% less space than traditional designs. That is suitable for the limited-space application.

Additionally, workers can quickly assemble COB character LCDs due to their fewer components. This design also makes the LCDs more reliable, as the parts are better protected and are less likely to be damaged.

The LED backlight provides multiple color options (Blue/Yellow-Green/Grey/White/Red). Plus, with optional positive or negative display types, you can choose any combination to match your design needs.

The module also features a wide operating temperature range of -20 to +70 °C.
