16x2 LCD Display Price of China Factory, Character LCD Module 16 Pins

Product highlights

Low Price: 16x2 LCD display price is always under $1. China Factories can produce in large quantities.

Low Power Consumption: Compared to simple LED displays, it consumes lower power. Thus, it is suitable for battery-powered devices.

Easy to Use: Thanks to the parallel interface, it can easily connect to a microcontroller of Arduino or Raspberry Pi based project. It is also available in SPI or I2C interface by using RW1063 controller IC.

Product description

This 16x2 LCD display is a character LCD Module with FSTN/STN display type / 16x2 Characters / Parallel Interface / SPLC780 or Equivalents Driver IC / COB.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC1602NT

Control IC Datasheet: SPLC780 or Equivalents

More Details

This 16x2 LCD display module consists of a 16x2 charactors screen with FSTN/STN panel, an pic microcontroller, 6800 4-bit/8-bit Parallel interface, PCB.

This character display is a passive matrix LCD (liquid crystal display) available in FSTN or STN panels. The LCD screen can show black text with 16 characters by 2 lines. It is perfect for presenting data in a compact and easy-to-read format.

Engineers can easily connect to a microcontroller with parallel 4-bit mode or 8-bit mode. It is fantastic for any Arduino or Raspberry Pi based project.

This 16x2 LCD module is also available in SPI and I2C interface by using RW1063 controller IC.

The SPLC780 or an equivalent driver IC provides stable and reliable performance. The compact and durable COB (Chip-On-Board) design is ideal for space-limited applications.

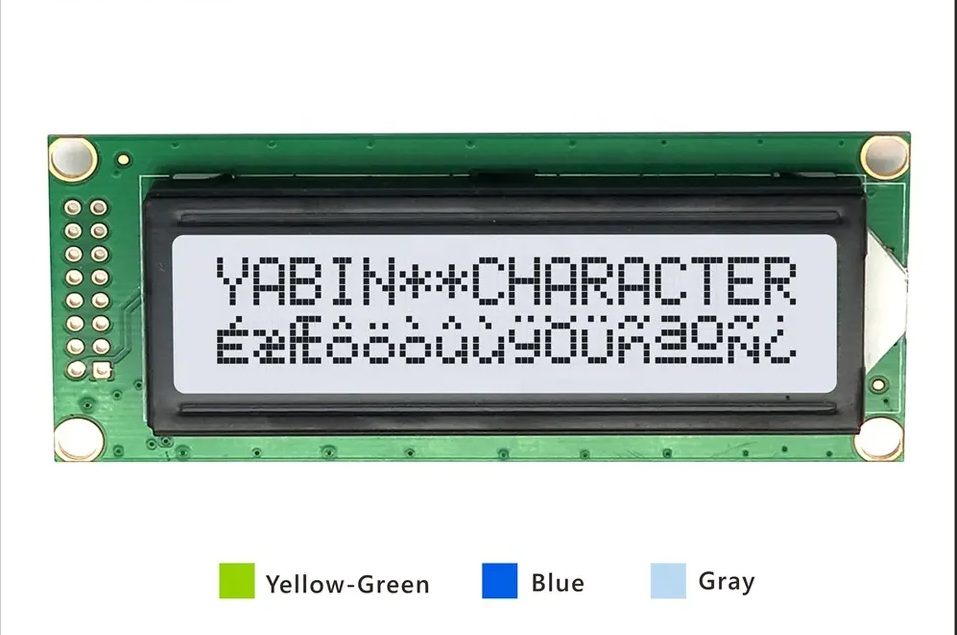

The LED backlight provides multiple color options (Blue/Green/Yellow/Grey/Red/White). Plus, with optional positive or negative display types, you can choose any combination to match your design needs.

The module also features a wide operating temperature range of -20 to +70 °C. The 16x2 LCD module works well in various industrial, medical, and consumer electronics applications.

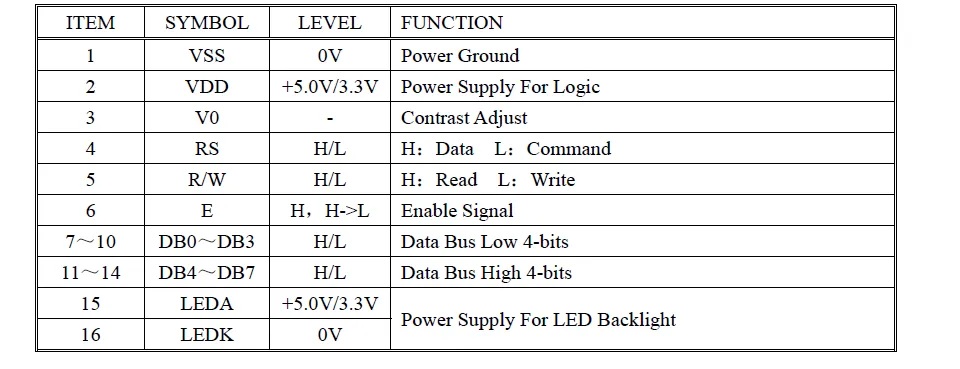

It has 16 pins conncetor.

Uses and Applications

This 16x2 LCD display can show numbers and simple text. You may consider it for these applications below:

• Electronic devices, like calculators and digital clocks, use it to show information.
• With it, industrial control panels can display critical information about the operation of machinery or processes.
• Medical devices use this character LCD to display vital signs, test results, or medication instructions.
• Some low-end portable music players use it as their display part.

Overall, character LCDs are a cost-effective and reliable solution for displaying simple information in many applications.

Your Requirement?

This is just one of our popular character LCD Modules; In Go2Display, you can find more color displays like TFT displays and OLED displays.

If none of these part numbers meet your requirements in any term, contact us(sales@go2display.com), who are willing to work with you.
