20x4 Character LCD Display Module with I2C Interface

Model / SKU: GFC2004NT

20x4 Character LCD Display Module features a low price and ease of use. You can easily connect it to you Arduino or Raspberry PI project with I2C Interface.

Display Format

20x4 Characters

LCD Active Area WxH (mm)

118.84 x 38.47

Interface Type

I2C, Parallel, SPI

Viewing Direction

6:00

Model / Series Name	GFC2004NT
LCD Type	FSTN/STN
Display Format	20x4 Characters
Module Size WxHxD (mm)	146.00 x 62.50 x 9.20
LCD Active Area WxH (mm)	118.84 x 38.47
Character Size (mm)	4.84 x 9.22
Control IC	RW1063
IC Package Type	COB
Interface Type	I2C, Parallel, SPI
LED Backlight Color	Blue / Yellow-Green / Grey
Viewing Direction	6:00
Display Type	Positive or Negative
Logic Power Supply Voltage	3.3V/5V
Operating Temperature	-20 ~ +70ºC
Storage Temperature	-30 ~ +80ºC

Model / Series Name

GFC2004NT

LCD Type

FSTN/STN

Display Format

20x4 Characters

Module Size WxHxD (mm)

146.00 x 62.50 x 9.20

LCD Active Area WxH (mm)

118.84 x 38.47

Character Size (mm)

4.84 x 9.22

Control IC

RW1063

IC Package Type

COB

Interface Type

I2C, Parallel, SPI

LED Backlight Color

Blue / Yellow-Green / Grey

Viewing Direction

6:00

Display Type

Positive or Negative

Logic Power Supply Voltage

3.3V/5V

Operating Temperature

-20 ~ +70ºC

Storage Temperature

-30 ~ +80ºC

Product highlights

Easy to Use: Its built-in controller can be easily connected to your Arduino or Raspberry Pi board using the standard I2C Interface. We also provide a well-documented datasheet, pinout library, and sample codes.

Affordable Price: As an LCD manufacturer, Go2Display supplies 20x2 character LCD displays at factory price.

Product description

This 20x4 Character LCD display is an LCD Module with FSTN/STN panel / 20x4 Characters Screen / I2C Interface / RW1063 Controller IC / COB.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC2004NT

Control IC Datasheet: RW1063

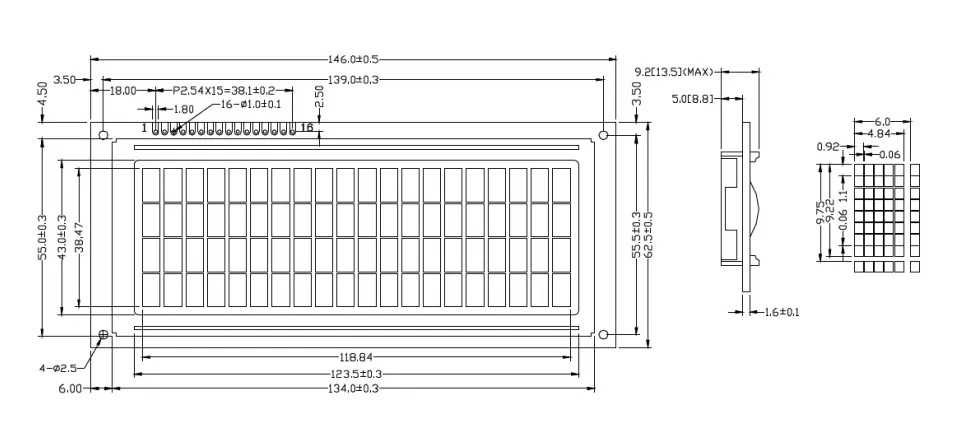

20x4 Character LCD Display Datasheet

20x4 Character LCD Display Module with I2C Interface datasheet

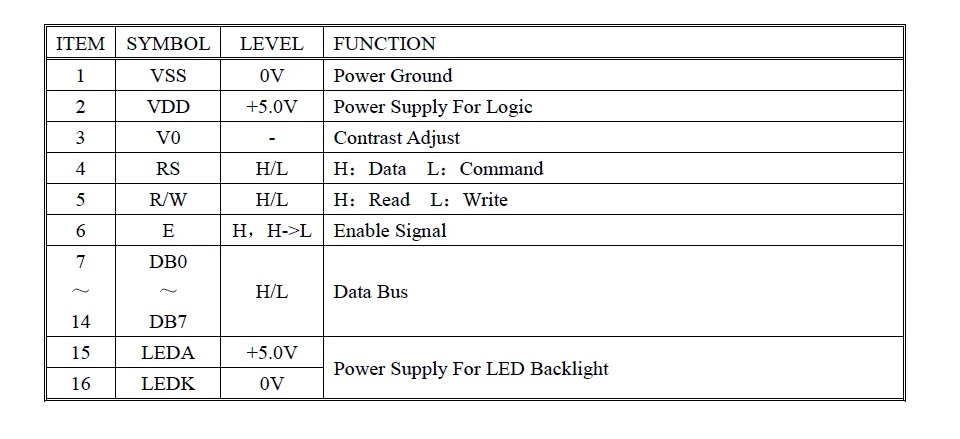

20x4 LCD Display Pinout Tutorial

20x4 Character LCD Display Module with I2C Interface pinout tutorial

Your Requirement?

This 20x4 character LCD Display Module is suitable for projects that require many characters.

If you want a smaller one, the 16x2 character LCD is a great option, with its 16 columns and 2 rows of screen space.

Or you can find some full color TFT displays for a complex project or application.

We always await your contact, whether you’re looking for a standard display or a custom solution。(sales@go2display.com)

More Details

This 20x4 Character LCD display module consists of a 20x4 LCD screen with FSTN/STN panel, a built-in IC controller, I2C interface, PCB.

This character LCD Display Module can show 20 Columns and 4 Rows. That allows you to display up to 80 characters at once on the screen. Additionally, It features a low price and ease of use. Therefore, it is a popular choice for hobbyists and professionals.

Whether it’s letters, numbers, or custom characters, this display can handle them all, like English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian).

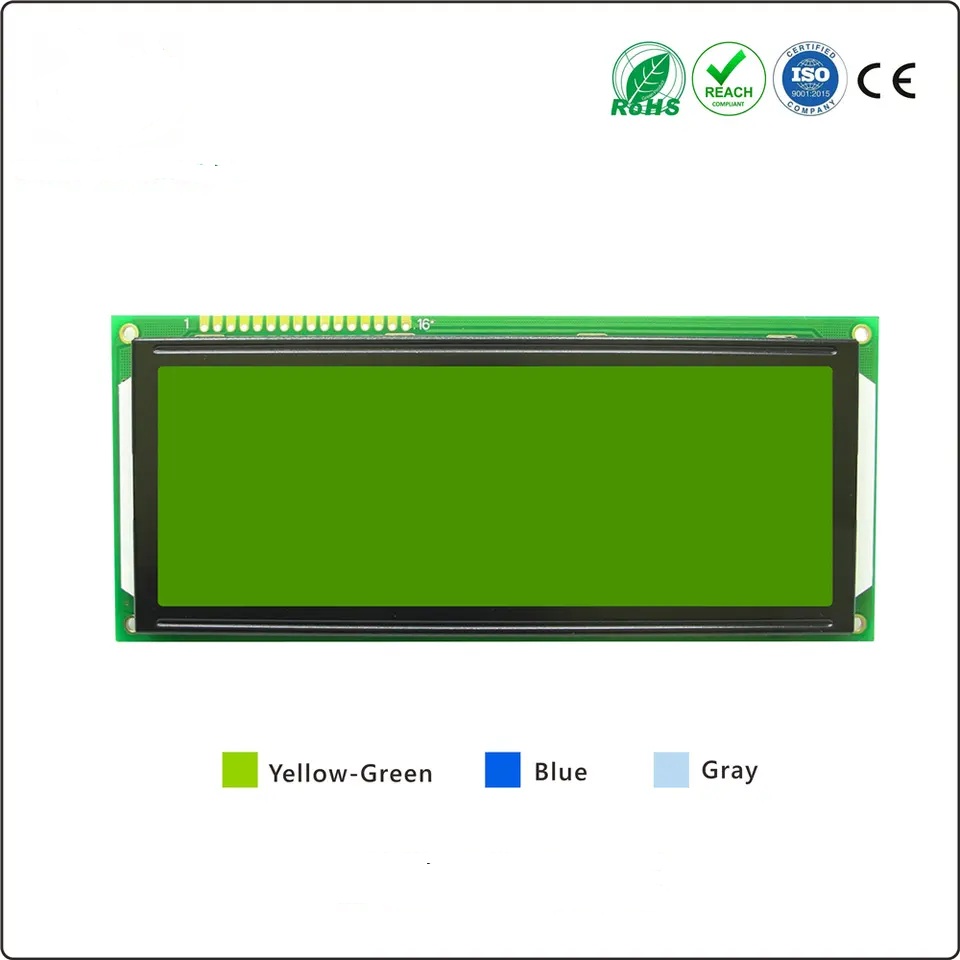

With its customizable backlight option, you can have one in a special backlight color, like green, blue or, grey. However, they have the same technical specifications and circuits. You can use the same code in your project with a custom backlight.

Its built-in controller can be easily connected to your Arduino board using a standard I2C Interface.

The COB (Chip On Board) design contains all components onto a single board. That is suitable for the limited-space application.
