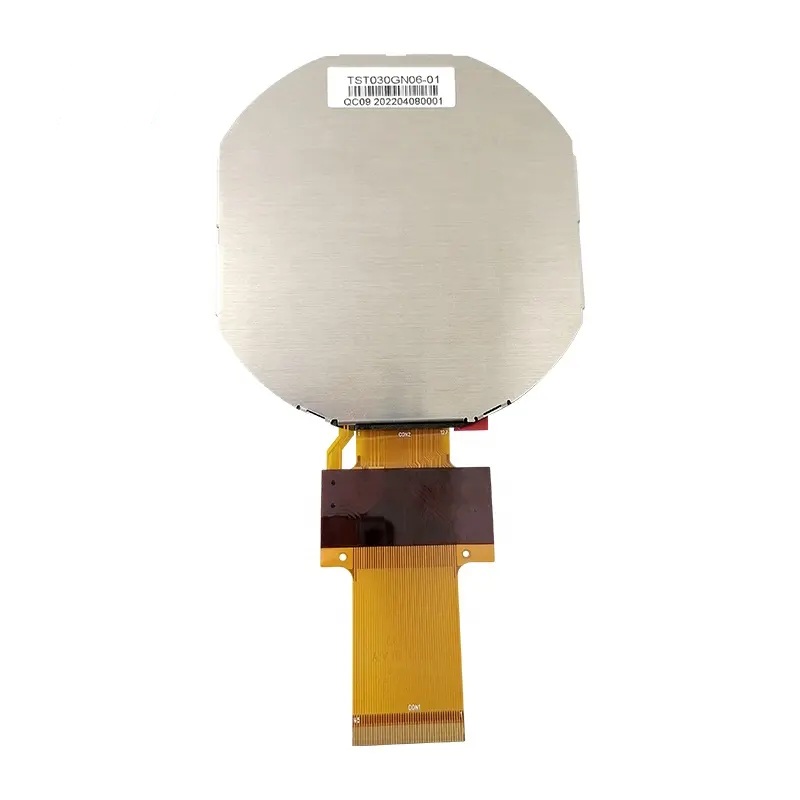

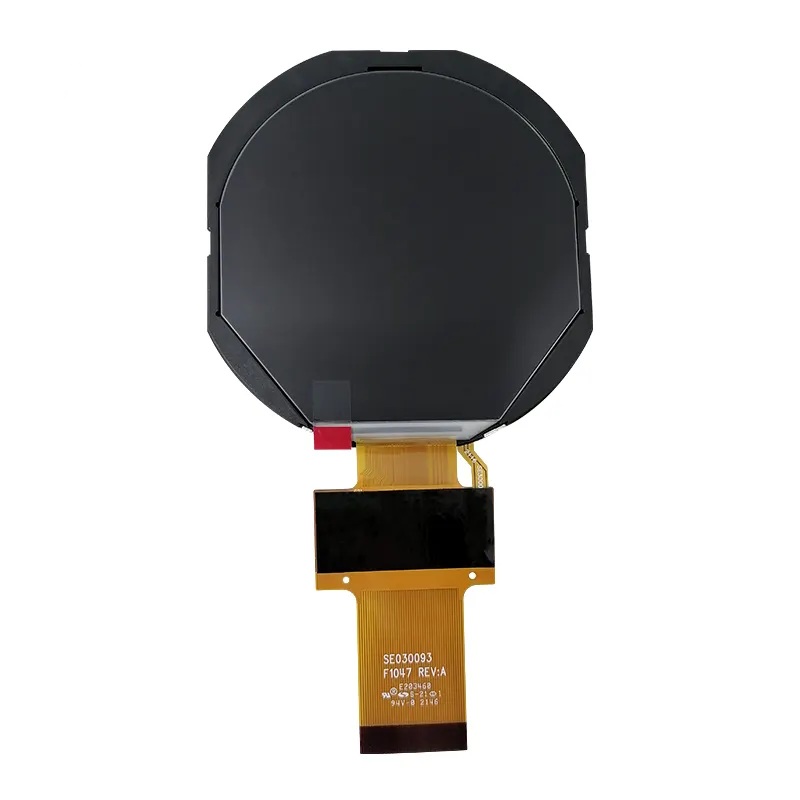

3 Inch Round LCD Display Wholesale

3 Inch Round LCD Display

Model / SKU: GFC432432-3INTM

3 Inch Round LCD Display is a full-color screen with circular shape, sunlight-readable brightness (1000 nits), high resolution (432×432), and touchscreen.

Diagonal Dimension (Inches)

3.0

LCD Active Area WxHxD (mm)

74.39 x 74.39

Display Mode

IPS, Transmissive, Normal black

Viewing Direction

All

Model / Series Name	GFC432432-3INTM
Diagonal Dimension (Inches)	3.0
Dots WxH	432 x 432
Module Size WxHxD (mm)	84.20 x 89.20 x 6.38
LCD Active Area WxHxD (mm)	74.39 x 74.39
Display Mode	IPS, Transmissive, Normal black
Display Colors	16.7M
Viewing Direction	All
Contrast Ratio	800:1
IC	HX8363 from Himax
Interface Type	SPI/24-bit RGB
Backlight	White LEDs
Luminance	1000 Nits
Touch Panel	None or Optional CTP (Capacitive Touch Panel)
Operating Volatge	3.3V
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 85 °C

Model / Series Name

GFC432432-3INTM

Diagonal Dimension (Inches)

3.0

Dots WxH

432 x 432

Module Size WxHxD (mm)

84.20 x 89.20 x 6.38

LCD Active Area WxHxD (mm)

74.39 x 74.39

Display Mode

IPS, Transmissive, Normal black

Display Colors

16.7M

Viewing Direction

All

Contrast Ratio

800:1

HX8363 from Himax

Interface Type

SPI/24-bit RGB

Backlight

White LEDs

Luminance

1000 Nits

Touch Panel

None or Optional CTP (Capacitive Touch Panel)

Operating Volatge

3.3V

Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 85 °C

Product highlights

Round: This shape suits smart mirrors, car displays, industrial control systems, etc.

It comes with the following:

high displaying quality,
accurate color reproduction,
sunlight readable display (1000 nits),
high resolution (432 x 432),
wide viewing angles (160 degrees),
optional touch panel.

Wholesale Price: As a TFT LCD manufacturer, Go2Display can give you a factory price.

Product description

This 3 inch Round LCD display is a IPS display Module with active-matrix TFT technology / 432×432 Resolution / Contrast ratio of 800:1 / Optional Cpacitive Touchscreen / SPI or 24-bit RGB Interface / HX8363 Driver IC / COG Package.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC432432-3INTM

Driver Datasheet: HX8363

Details about this 3 Inch Round LCD Display

This 3-Inch Round LCD Display is a full-color TFT display, designed for applications that need a small, circular screen with precise color reproduction and wide viewing angles.

It has a high resolution (432 x 432) and a contrast ratio (800:1). So, you can see sharp and clear graphics.

Furthermore, it can show a wide range of colors (16.7 million), making images look more natural and vivid.

It uses IPS panel technology, giving it a wide viewing angle (160 degrees) and making it easy to see from any direction.

The HX8363 built-in IC from Himax makes sure that color management is stable and works well.

This display is easy to put into different devices because it has a standard SPI interface and COG package.

An optional capacitive touchscreen panel (CTP) supports multi-touch input and interaction, making it perfect for applications requiring a round touchscreen interface.

It is a sunlight-readable display with a brightness of 1000 nits, making it easy to see even under the sun and in some ambient light places.

This display can work in temperatures from -20 to 70 °C and withstand storage temperatures from -30 to 85 °C, making it a good choice for various uses under bad conditions.
