4.3 inch TFT LCD Display 480x272 with Capacitive Touch Screen, RGB Interface

Model / SKU: GFC480272-4.3INTM

4.3 inch TFT LCD display is an IPS display With Capacitive TouchScreen, Resolution (480x272), Wide viewing angle (160°), Response time (3ms), Contrast (800:1).

Diagonal Dimension (Inches)

4.3

LCD Active Area WxHxD (mm)

95.04 x 53.86

Display Mode

IPS / Transmissive

Interface Type

MCU/RGB Interface (MIPI Customizable)

Model / Series Name	GFC480272-4.3INTM
Diagonal Dimension (Inches)	4.3
Dots WxH	480 x 272

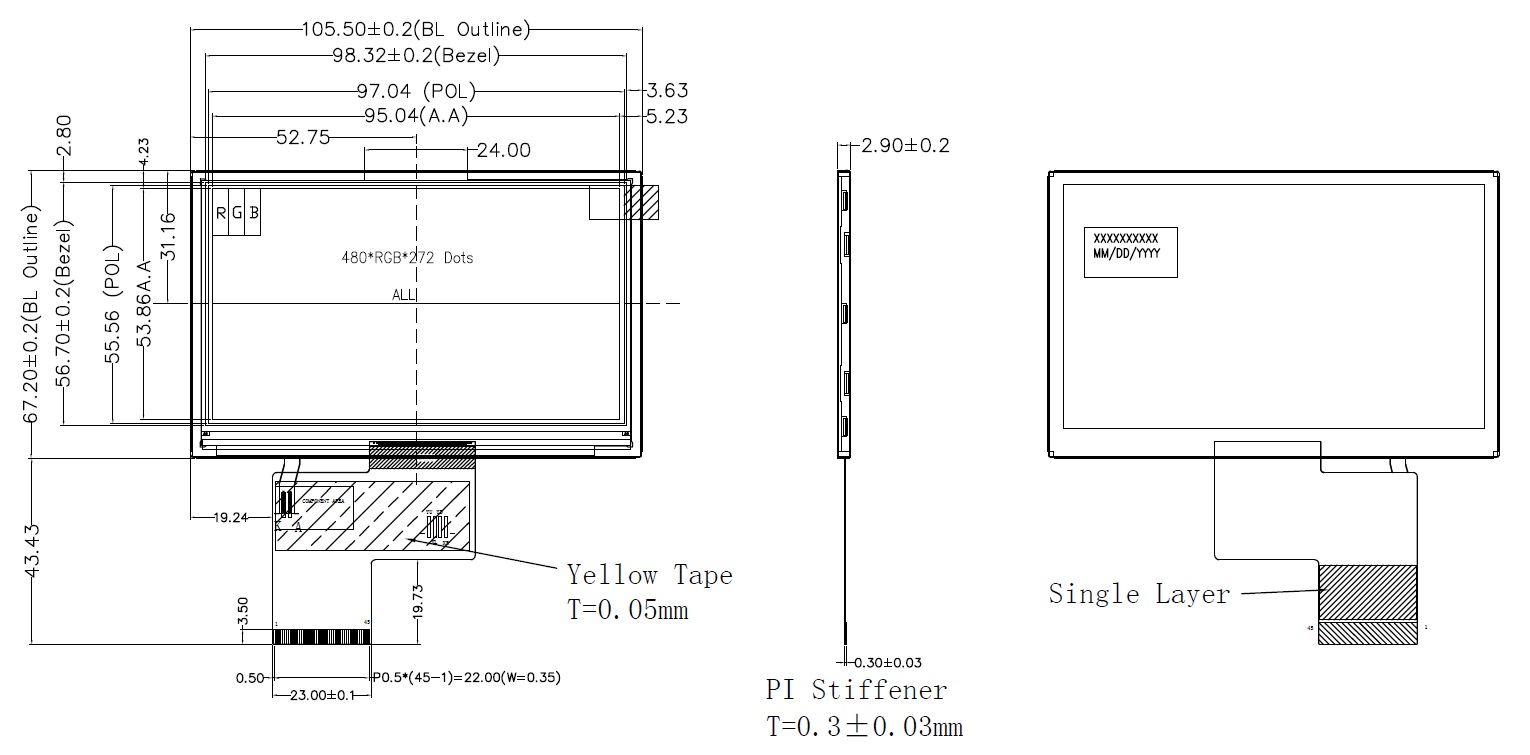

Module Size WxHxD (mm)	105.50 x 67.2 x 2.90
LCD Active Area WxHxD (mm)	95.04 x 53.86
Display Mode	IPS / Transmissive
Viewing Angle	Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;
IC	ST7283
Interface Type	MCU/RGB Interface (MIPI Customizable)
Logic Power Supply Voltage	3.0V to 3.6V
Backlight	10 LEDs
Luminance	500 cd/m2
Touch Panel	Optional RTP or CTP

Model / Series Name

GFC480272-4.3INTM

Diagonal Dimension (Inches)

4.3

Dots WxH

480 x 272

Module Size WxHxD (mm)

105.50 x 67.2 x 2.90

LCD Active Area WxHxD (mm)

95.04 x 53.86

Display Mode

IPS / Transmissive

Viewing Angle

Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;

ST7283

Interface Type

MCU/RGB Interface (MIPI Customizable)

Logic Power Supply Voltage

3.0V to 3.6V

Backlight

10 LEDs

Luminance

500 cd/m2

Touch Panel

Optional RTP or CTP

Product highlights

Compatibility with content: This 4.3 inch TFT LCD has a 16:9 aspect ratio, the standard format in modern content. Then, it can display videos in their original format without the need for letterboxing or cropping.

Widescreen viewing experience: Meanwhile, the IPS panel provides a wide viewing angle of 160 degrees. So, we can have a widescreen viewing experience.

Sharp Image Clarity: We can see sharp and clear videos due to its high resolution of 320x240, contrast of 800:1, and brightness of 500 Nits.

Interactive Design: You can add a resistive or capacitive touch screen to enhance the user experience and control it without additional buttons or input devices.

Customizable Solution: You can customize your TFT display solution to meet specific requirements, including size, shape, IC, FPC cable shape, etc.

Product description

This 4.3 inch TFT LCD display is an IPS backlit display Module with IPS panel / Active-Matrix TFTs / Resolution of 480×272 / Contrast ratio of 800:1 / 3ms Response Time / Optional Touchscreen / RGB Interface / ST7283 Controller / FPC connector.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC480272-4.3INTM

Driver Datasheet: ST7283

More for this 4.3 inch TFT LCD Display

This 4.3 inch TFT LCD consists of a 4.3” IPS panel with a-Si TFTs, an ST7283 IC controller, RBG interface, an FPC cable connector, and 10 LEDs as backlight.

Display Effect

Compared with TN-TFT and VA-TFT, IPS TFT display is the most widely used TFT LCD. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS screen for iPhone 11.

We’ve been looking for a display like this for a long time. It has 4.3 inch diagonal but a high resolution of 480x270 pixels and full-angle viewing. So, we can see clear, easy-to-read information in medical devices such as patient monitors and blood glucose meters.

Meanwhile, thanks to its wide viewing angle and good color accuracy, our clients use it in industrial and scientific equipment, such as test and measurement devices.

Furthermore, the high contrast ratio of 800:1 enhances the visual experience by providing deep blacks and bright whites.

The 3ms response time ensures no ghosting or blurring in fast-moving scenes.

Its brightness of 500 Nits can make colors sharper and work well even in bright environments, such as outdoor settings.

Other Benefits

The optional resistive or capacitive touch screen functionality provides an interactive experience, making it ideal for applications such as POS systems, industrial control systems, and more.

The display comes with an Sitronix ST7283 controller and an RGB interface, making it easy to integrate into many systems.

The FPC connector ensures that factories can easily and securely connect to the product without the need for any soldering.
