5 Inch Round LCD Display

Product highlights

Round: This shape is good for home security systems, smart mirrors, and other special uses.

It features:

• high picture quality,
• vivid color reproduction,
• high resolution,
• wide viewing angles,
• optional touch interaction,
• and small size.

Wholesale Price: As a TFT LCD manufacturer, Go2Display can offer you a factory price.

Product description

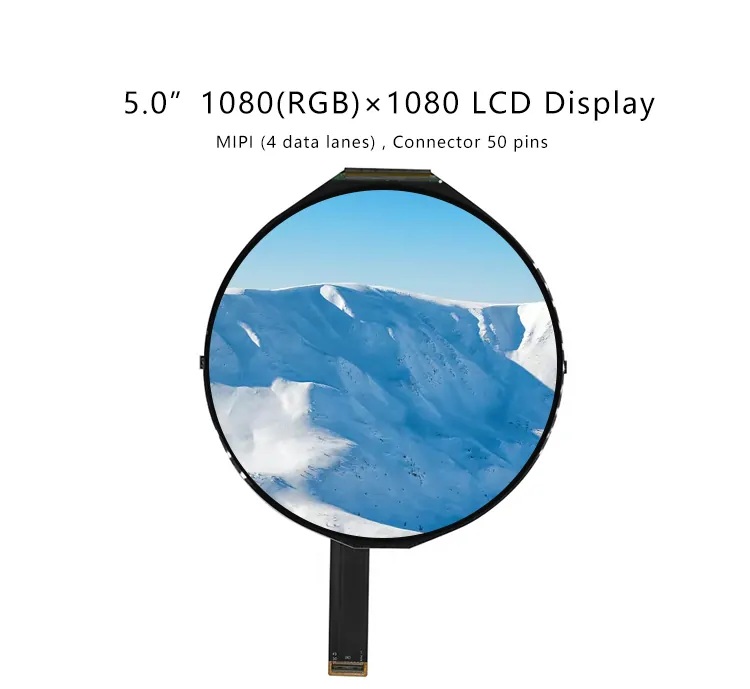

This 5 inch Round LCD display is a TFT display Module with IPS panel / 1080×1080 Resolution / Contrast ratio of 1300:1 / Optional Cpacitive Touchscreen / MIPI Interface / HX8399C Driver IC / COG Package.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC10801080-5INTM

Driver Datasheet: HX8399C

Details of this 5 Inch Round LCD Display

This 5 Inch Round LCD Display is a full-color TFT display. It is perfect for applications that need a round display with accurate color reproduction and wide viewing angles.

It has a high resolution (1080 x 1080) and a contrast ratio (1300:1). This makes the graphics on the screen look sharp and detailed.

Meanwhile, it can show a wide range of colors (16.7 M). Then, we can see more natural and clear images.

The IPS panel technology gives a wide viewing angle (160 degrees). Thus, the screen is always the same from any side.

The HX8399C driver IC from Himax can control and manage the colors in a stable, high-performance way.

It has a standard MIPI interface and a small COG package, making it easy to put into many devices.

An additional capacitive touchscreen panel (CTP) allows multi-touch input and interaction. Some applications need a round touchscreen to run.

This round LCD screen has a luminance of 350 nits. Then, users can easily see even in bright light, and it prevents screen glare.

It can work in temperatures from -20 to 70 °C and be stored from -30 to 85 °C. That is why many devices use it as their display solution.

Your Requirement?

This 5-inch round LCD display features

• high picture quality,
• vivid color reproduction,
• high resolution,
• wide viewing angles,
• optional touch interaction,
• and small size.

Therefore, many applications will use it as their circular display solution, like

• industrial control systems,
• medical equipment,
• automotive displays,
• smart mirrors, and more.

If none of its parameters fit the needs of your project, we can still make a custom TFT display solution for your unique product.

Just contact us (sales@go2display.com) to talk about your project, and we’ll help you figure out what your options are.
