8x2 LCD Display Manufacturer Wholesale Price $1

Model / SKU: GFC0802NT

8x2 LCD Display Manufacturer Wholesale Price is $1. It consumes lower power and easily connect to an Arduino or Raspberry Pi based project.

Display Format

8x2 Characters

LCD Active Area WxH (mm)

30.19 x 12.65

Interface Type

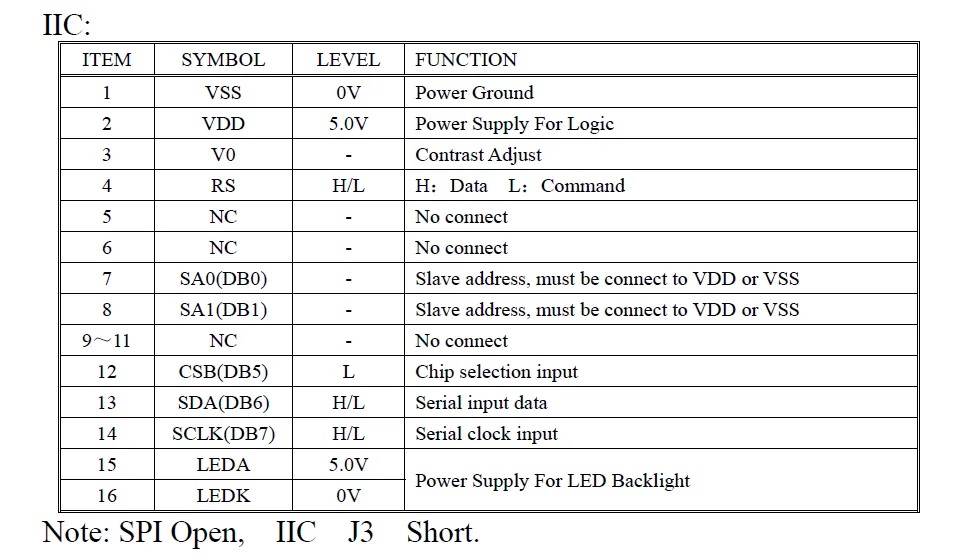

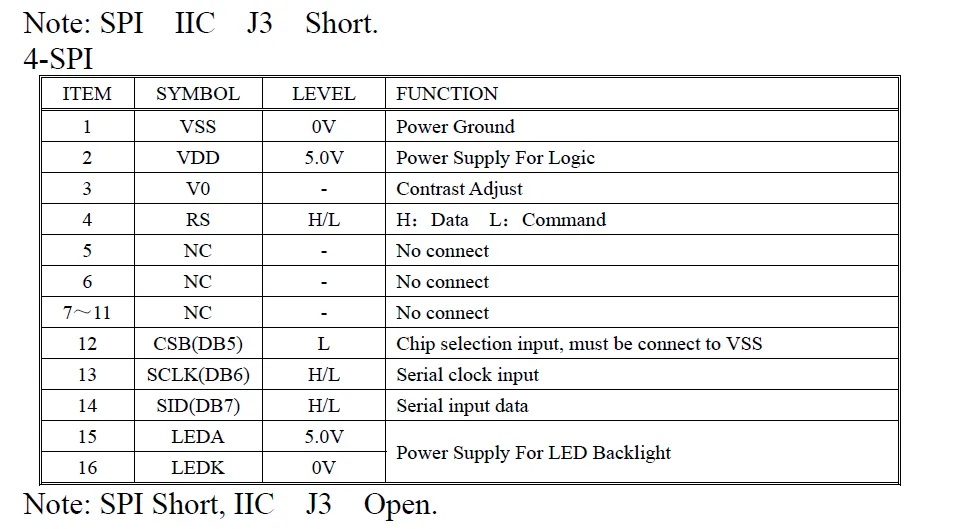

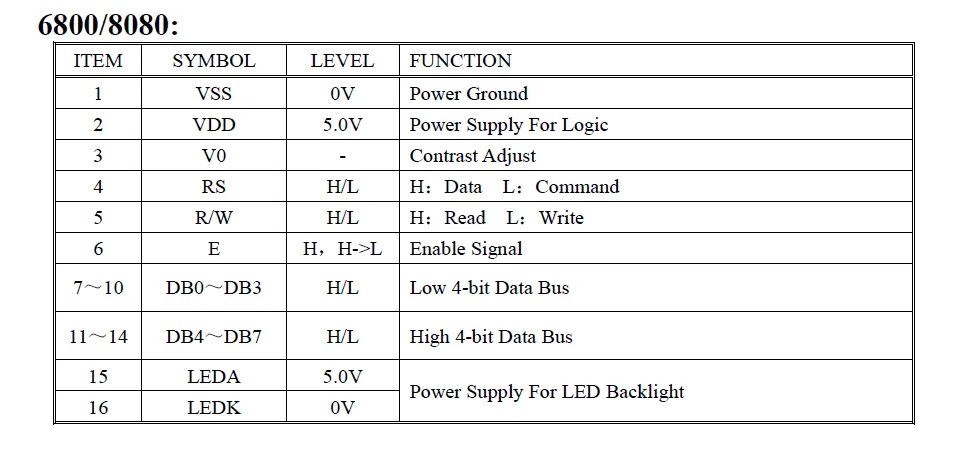

6800 4-bit Parallel , 6800 8-bit Parallel, SPI, I2C

Viewing Direction

6:00

Model / Series Name	GFC0802NT
LCD Type	FSTN/STN
Display Format	8x2 Characters

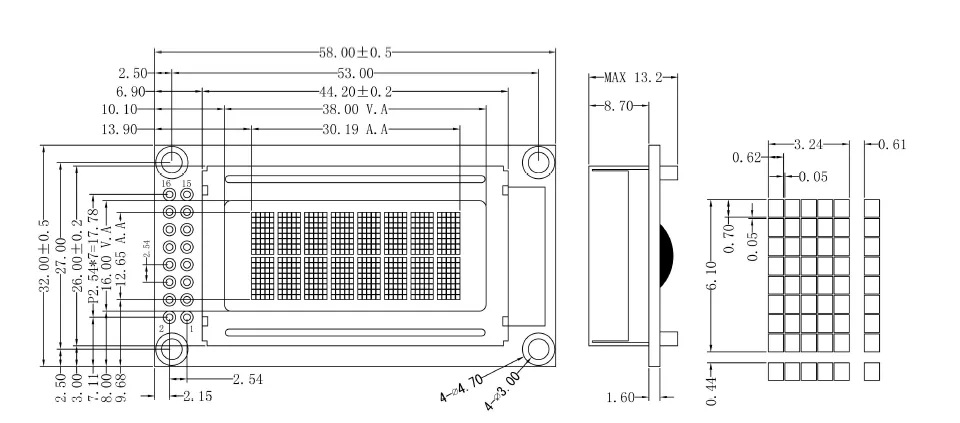

Module Size WxHxD (mm)	58.00 x 32.00 x 13.20
LCD Active Area WxH (mm)	30.19 x 12.65
Character Size (mm)	3.25 x 6.09
Dot Pitch (mm)	0.45 x 0.488
Control IC	RW1063 or Equivalents
IC Package Type	COB
Interface Type	6800 4-bit Parallel , 6800 8-bit Parallel, SPI, I2C
Viewing Direction	6:00
LED Backlight Color	Blue / Yellow-Green / White / Grey
Display Type	Positive or Negative
Logic Power Supply Voltage	3.3V/5V
Operating Temperature	-20 ~ +70ºC
Storage Temperature	-30 ~ +80ºC

Model / Series Name

GFC0802NT

LCD Type

FSTN/STN

Display Format

8x2 Characters

Module Size WxHxD (mm)

58.00 x 32.00 x 13.20

LCD Active Area WxH (mm)

30.19 x 12.65

Character Size (mm)

3.25 x 6.09

Dot Pitch (mm)

0.45 x 0.488

Control IC

RW1063 or Equivalents

IC Package Type

COB

Interface Type

6800 4-bit Parallel , 6800 8-bit Parallel, SPI, I2C

Viewing Direction

6:00

LED Backlight Color

Blue / Yellow-Green / White / Grey

Display Type

Positive or Negative

Logic Power Supply Voltage

3.3V/5V

Operating Temperature

-20 ~ +70ºC

Storage Temperature

-30 ~ +80ºC

Product highlights

Are you looking for a reliable and cost-effective LCD display solution for your electronic projects or industrial control systems?

Look no further than this 8x2 LCD Display at Wholesale Prices at $1!

It features benefits including low price, low power consumption, customizable, and ease to use.

Product description

This 8x2 LCD display is a character LCD Module with FSTN/STN panel / 8x2 Characters / 6800 4-bit, 8-bit mode Parallel, SPI or I2C Interface / RW1063 or Equivalents Microcontroller IC / PCB.

The high quality, low price product is always our long-term goal.

Technical Details

Download Product References Below

Product Datasheet: GFC0802NT

Control IC Datasheet: RW1063 or Equivalents

More Details

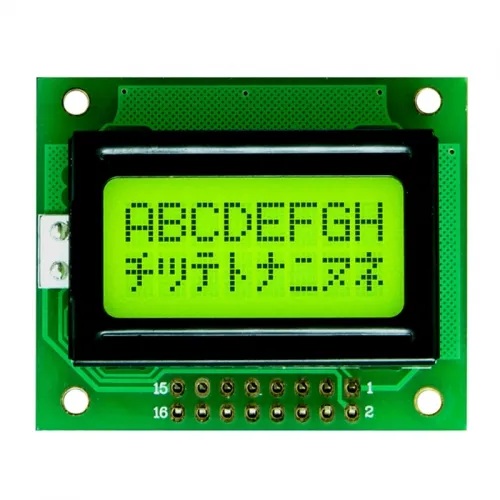

This character LCD module is a passive matrix LCD available in FSTN or STN panels.

This LCD module can display up to 8 characters per line and 2 lines of text.

RW1063 IC provides 6800 4/8-bit parallel, 4-SPI, and I2C. So you can quickly wire up and program. And make a project look well more professional with Arduino or Raspberry Pi.

You can get the datasheet and sample code.
